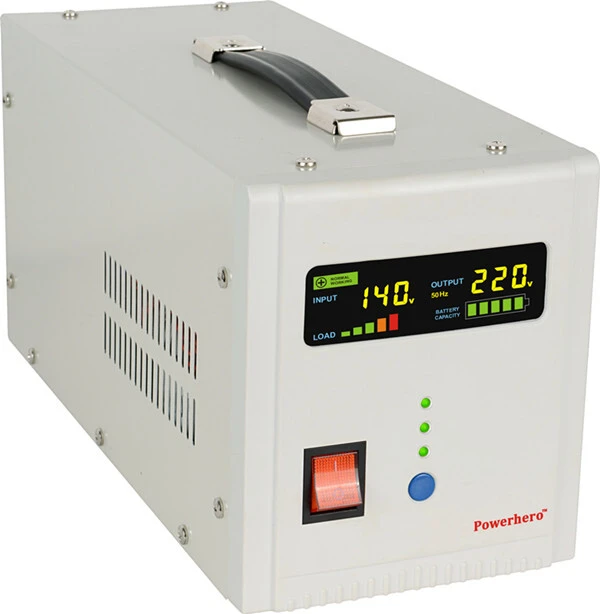

EPSI-1500 pure wave sine inverter

pure wave sine inverter
pure wave sine inverter
  • pure wave sine inverter
  • CPSI1
  • EPSI-1500 pure wave sine inverter
  • Place of Origin: Guangdong, China
  • Brand Name: Powerhero
  • Inquire Online


EPSI Series Pure sine wave inverter

Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: EPSI-1500
Output Power: 1050W
AC charging current selected 10A/20A
NO-loading current less than 1.4A
Size: 337*146*170mm
Output Frequency: 50HZ/60HZ
LED Display selectable

Packaging & Delivery
Packaging Details:
Export special carton
Delivery Detail:

Features :
With wide AVR range 140-275 Vac gives you stable voltage at mains mode
Big charging current, 3 stage battery charger
A true sine wave with very low harmonic distortion
True C.R.G.O toroidal transformer ,lower static loss, more energy-saving
32-bit high speed MCU control with accurate detection
Smart digital display
Integrated frequency automatic tracking technology, generator compatible

Model EPSI-500 EPSI-800 EPSI-1000 EPSI-1500 EPSI-2000 EPSI-2500 EPSI-3000
Rated Capacity 500VA 800VA 1000VA 1500VA 2000VA 2500VA 3000VA
Rated Power 300W 500W 700W 1050W 1400W 1800W 2100W
Transformer C.R.G.O
Interface LED graphic
Display Status working & loading & battery
Working Mode PV(Photovoltaic priority) / ACAC priorityOptional
Input Voltage 140~275 Vac
Frequency 45~65 Hz
Output Voltage 220Vac ±3% for inverter;190V-245V for avr
Frequency 50/60 Hz ± 0.3Hz, subject to the main
Wave Form Pure sinve wave
Wave Distortion ≤ 3%
Protection overload / high temperature / output high voltage / output low voltage / battery low voltage / short circuit / over-charge / over-discharge / reversed polarity(optional)
Transfer Time ≤ 4ms
Battery Voltage 12V DC 12V DC 12V DC 24V DC 24V DC 24V DC 48V DC
Charge Voltage 13.8V±0.5V 13.8V±0.5V 13.8V±0.5V 27.6V±0.6V 27.6V±0.6V 27.6V±0.6V 55V±1V
Low Battery Voltage Limit 10.9V ±0.3V 10.9V ±0.3V 10.9V ±0.3V 21.8V ±0.6V 21.8V ±0.6V 21.8V ±0.6V 42V ±1V
Battery Low Voltage Protection Point 10.2V ±0.3V 10.2V ±0.3V 10.2V ±0.3V 20.5V ±0.6V 20.5V ±0.6V 20.5V ±0.6V 41V ±1V
Charge Current Max. 10A/15A/20A optional
Cooling System Yes
Environmental Operating Temperature 0 - 40 ℃
Relative Humidity 10%~90% RH, non-condensing
Storage Temperature ﹣15 - 45 ℃
Packing Machine Size(mm) 230x145x180 337x146x170 355x220x250
Qty/Ctn 4 4 2 2 1 1 1
Carton Size (mm) 785x305x240 415x410x255 395x272x305
Carton G.W. (kg) 22 26 17.2 19.1 13 14.8 16.1
