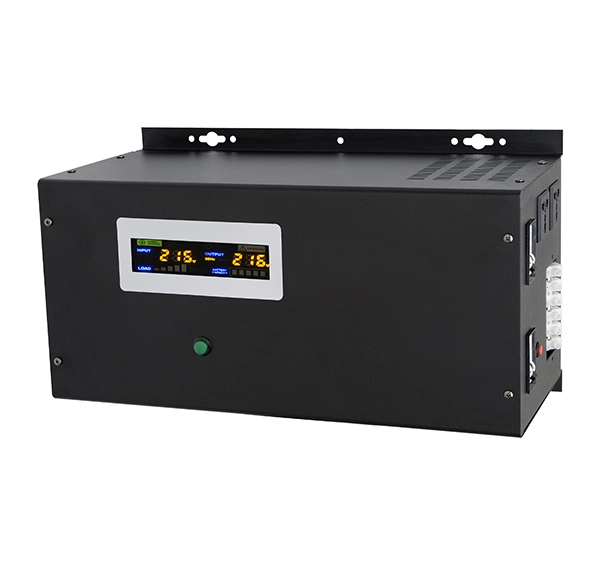

SME pure sine wave inverter 1600

SME pure sine wave inverter 1600
SME pure sine wave inverter 1600
prev
  • SME pure sine wave inverter 1600
next
  • SME pure sine wave inverter 1600
  • Place of Origin: Guangdong, China
  • Brand Name: Powerhero
  • Inquire Online

Information

SME Series Pure sine wave inverter

Quick Details
* Place of Origin: Guangdong, China (Mainland)
* Brand Name: Powerhero
* Model Number: SME1600
* Output Power: 1600W
* AC charging current selected 20A/40A
* NO-loading current less than 2.5A
* Size: 580*330*275mm
* Type: DC/AC Inverters
* Output Frequency: 50HZ/60HZ
Packaging & Delivery
Packaging Details: Export special carton
Delivery Detail: 20 days

Features:

Powerful 300% surge power
Big charging current, 3 stage battery charger
A true sine wave with very low harmonic distortion
True C.R.G.O toroidal transformer, lower static loss, more energy-saving
32-bit high speed MCU control with accurate detection

Model  SME1000 SME1200 SME1400 SME1600 SME2100 SME2400 SME3000 SME3500
Rated Power 1000W 1200W 1400W 1600W 2100W  2400W 3000W 3500W
Surge Protection Power 3000W 3600W 4200W 4800W 6300W 7200W 9000W 10500W
NO-LOADING Current (DC mode)   <2.5A
Transformer C.R.G.O
Interface LED graphic
Display Status working & loading & battery
Input Voltage 140~275 Vac
Frequency 45~65 Hz
Output Voltage 220Vac ±1% for inverter; 220Vac ±8% for regulator
Frequency 50/60 Hz ± 0.5Hz, subject to the main
Wave form Pure sinve wave
Wave distortion ≤ 3%
Protection Overload, High temperature, Output high/low voltage, Battery low voltage, Short circuit, Over-charge, over-discharge
Transfer Time ≤ 6ms
Battery Voltage 12V DC 12V DC 12V DC 12V DC 24V DC 24V DC 24V DC 24V DC
Charge Voltage 13.8V±0.5V 13.8V±0.5V 13.8V±0.5V 13.8V±0.5V 27.6V±0.5V 27.6V±0.5V 27.6V±0.5V 27.6V±0.5V
Low Battery Voltage Limit 11V ±0.5V  11V ±0.5V  11V ±0.5V  11V ±0.5V  22V ±1V 22V ±1V 22V ±1V 22V ±1V
Battery Low Voltage Protection Point  10.5V ±0.5V   10.5V ±0.5V   10.5V ±0.5V   10.5V ±0.5V   21V ±1V 21V ±1V 21V ±1V 21V ±1V
Charge Current 20A /40A selectable
Charge Mode 3-stage: bulk, boost, float
Cooling system Yes
Environmental Operating temperature 0 - 40 ℃
Relative humidity 10%~90% RH, non-condensing
Storage temperature ﹣15 - 45 ℃
Packing  Machine Size (mm) 507*330*275
Qty/ Ctn 1
Carton Size (mm) 580*345*290
