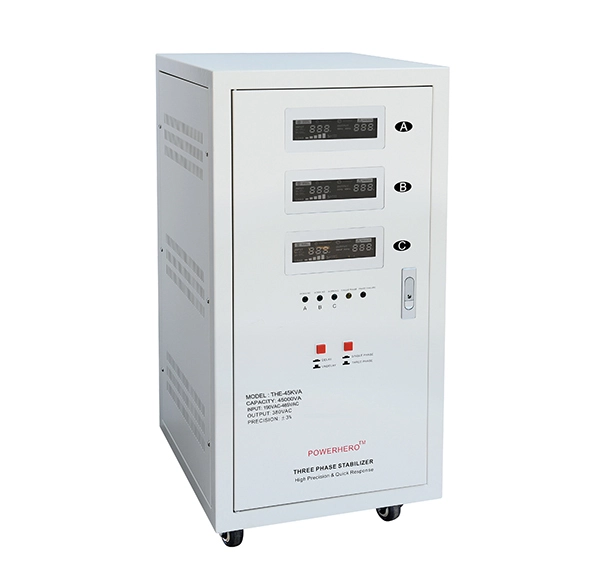

THE-45KVA

Phase Hybrid Stabilizer
Phase Hybrid Stabilizer
prev
  • Phase Hybrid Stabilizer
next
  • THE-45KVA
  • Place of Origin: Guangdong, China
  • Brand Name: Powerhero
  • Inquire Online

Information

Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: THE-45KVA
Usage: SVC
Phase: Three Phase
Current Type: AC
color: white
Display: LED graphic
type: servo motor type
control mode: MCU control

Packaging & Delivery
Packaging Details: Machine Size: 35*44*80CM
Carton Box: 55*64*120CM 1PCS/CTN,95 Kgs/CTN
Delivery Detail: 5-25 days

Specifications
15KVA three phase stabilizer
1, Phase Input range: 190-465Vac
2, Phase Output: 220V+/-3%, 50Hz/60Hz
3, Full protections

Model SHE 130v-270v~ SHE-15000 SHE-25000 SHE-30000 SHE-45000 SHE-60000
THE110v-270v~ THE-15000 THE-25000 THE-30000 THE-45000 THE-60000
Rated Capacity 15000VA 25000VA 30000VA 45000VA 60000VA
Phase Three phase
Transformer C.R.G.O. toroidal transformer
Indicator LED graphic
Display Status working and loading
Output Frequency 50/60 Hz
Voltage 110/120/220/230/240 Vac optional
Precision ± 1%-3%
Protection overload / high temperature / high voltage / low voltage / short circuit
Delay Function delay / un-delay (180/6 seconds selectable)
Efficiency  98%
Cooling System Smart cooling for 3000Va and above
Environmental Operating Temperature 0 - 40 ℃
Relative Humidity 10%~102% RH, non-condensing
Storage Temperature ﹣15 - 45 ℃
Appearance Size (Max. mm)  440*400*830
N.W. (kg)SHE 39.2 50.3 58.6 76.5 103.6
N.W. (kg)THE 40.3 51.2 60.0 78.6 105.2
Packing  Qty/Ctn 1
Carton Size (mm)  520*485*1035
Carton G.W. (kg)SHE  42.6 53.1 61.8 79.6 107.8
Carton G.W. (kg)THE  43.1 54.2 62.9 80.2 108.3

Huizhou Yinghua Electronic Co., LTD always stands at the top of being creative. We are the first toroidal inverter inventor which using the toroidal transformers technology and truly aluminum transformer innovator. We have developed 3-phase hybrid automatic voltage regulator which reach ±3% precision through relay and servo technology combination.

FOB Guangzhou/Shenzhen; EXW available

We are offering 1 year warranty for all products and parts according.  . We also are offering technical training for you to make better use of our products.
