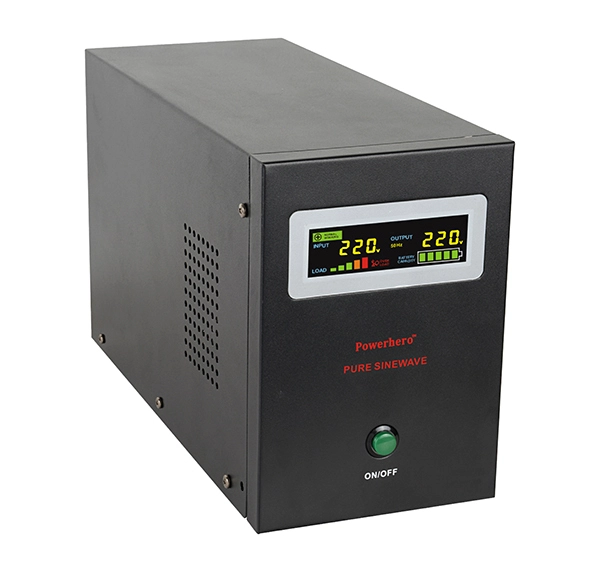

P Series Sinewave Inverters PSE-1500

P Series Sinewave Inverters PSE-1500
P Series Sinewave Inverters PSE-1500
prev
  • P Series Sinewave Inverters PSE-1500
next
  • P Series Sinewave Inverters PSE-1500
  • Place of Origin: Guangdong, China
  • Brand Name: Powerhero
  • Inquire Online

Information

    Huizhou Yinghua Electronic Co., LTD always stands at the top of being creative. We are the first toroidal inverter inventor which using the toroidal transformers technology and truly aluminum transformer innovator. We have developed 3-phase hybrid automatic voltage regulator which reach ±3% precision through relay and servo technology combination.

     Pure sine wave inverter can switch DC electric power into AC power. It also called UPS (Uninterrupted Power Supply). When AC power-down, inverter can contain power supply with DC power and ensure devices normal operation.
    Pure sine wave inverter is widely used in various equipments, such as communication system, aviation, home application; emergency system, fire protection system, vehicle-mounted, boat-mounted, and stage devices. Pure sine wave inverter also can form an EPS (Emergency Power Supply) system.
    Maintenance considerations are as follows:
1、Operating inverter according to users manuals.
2、Switch off when not in use.
3、Put inverter in a safe place to avoid shock.
4、Don’t put anything on the top of inverter
5、No excessive sun exposure.
6、Don’t watering inverter.


Quick Details

Place Of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: PSE-1500
Output Power: 500- 1050W
Output Type: Single
Size: 341x146x210(mm)
Input Voltage:140- 275Vac
Output Voltage: 220V±8%
Type: DC/AC Inverters
Output Frequency: 50 / 60Hz
Panel: Metal panel
Waveform: Pure sine wave
Color: Black
Display: LED graphic colorful display
Max Charging Current:10- 20A selectable




Packaging & Delivery


Packaging Details: 1 pcs to 1 individual colourful box
2 pcs to 1 individual carton box
Delivery Detail: within 30 days after receiving the deposit

FOB Guangzhou/Shenzhen; EXW available

Specifications


1, Innovation TTItechnology
2, With charger & AVR
3, DC Input: 12V
4, Output: 220V, 50 / 60Hz
5, Very low idle current


Applications:
Television, refrigerator, air condition, computer, electric fan, induction cooker,generator, printer, duplicators, lighting equipment, test equipment, and etc.


Description:

PSE Series Inverter UPS provides pure sine wave power for commercial, household and industrial applications. Capacity availability range from 500VA to 7000VA, itcan power most common electrical appliances in these fields.
CPU control
CPU control, built in intelligent software offers high precision output.
PWM technology, pure sine wave output
Puresine wave output, suitable for all types of loading includes resistive load,inductive load, complex load…
LED colorful human machine interface
Sensitive short circuit protection
When short circuit happens, UPS will shut down and giving warning.
Sensitive intelligent overload protection
On battery mode, overload more than 110%, UPS will give warning (beeping) for 30 seconds, after 30 seconds; UPS will switch off inverter to avoid damage.
On battery mode, overload more than 150%, UPS instantly switches off. On normal model, overload will activate the beeping warning until loading is reduced to normal range.
Shorter transfer time
<4ms, make sure your IT applications work smoothl
Self diagnostic function
Individual charger
When main power comes back, battery will be recharged automatically



Model PSE-500 PSE-1000 PSE-1500 PSE-2000 PSE-3000
Rated Capacity 500VA 1000VA 1500VA 2000VA 3000VA
Rated Power 300W 700W 1050W 1400W 2100W
Transformer C.R.G.O
Interface LCD
Display Status working & loading & battery
Input Voltage 140~ 275 Vac
Frequency 45~ 65 Hz
Output Voltage 220Vac ±1% for inverter; 220Vac ±8% for regulator
Frequency 50 / 60Hz ± 0.5Hz, subject to the main
Wave form Pure sinve wave
Wave distortion ≤ 3%
Protection Overload Yes
High temperature Yes
Output high/low voltage Yes
Battery low voltage Yes
Battery Over charge, over discharge, reversed polarity protection (optional)
Short circuit Yes
Transfer Time ≤ 4ms
Battery Voltage 12V DC 12V DC 24V DC 24V DC 48V DC
Charge Voltage 13.8V±0.5V 13.8V±0.5V 27.6V±0.5V 27.6V±0.5V 55V±1V
Low Battery Voltage Limit - 11V ±0.5V 11V ±0.5V 22V ±1V 22V ±1V 44V ±1V
Battery Low Voltage Protection Point - 10.5V ±0.5V 10.5V ±0.5V 21V ±1V 21V ±1V 42V ±1V
Charge Current Max. 10 / 20A Selectable
Cooling system Yes
Environmental Operating temperature 0- 40 °C
Relative humidity 10%~ 90% RH, non condensing
Storage temperature -15 - 45 °C
Appearance Inverter size (mm) 341x146x210 384x219x275
Inverter N.W. (kg) 5.60 8.15 9.20 13.20 17.20
Inner box size (mm) 405x195x265 445x270x340
Qty/Ctn 2 1
Carton size (mm) 445x430x285 445x270x340
Carton G.W. (kg) 13.60 18.30 20.60 14.00 18.00
