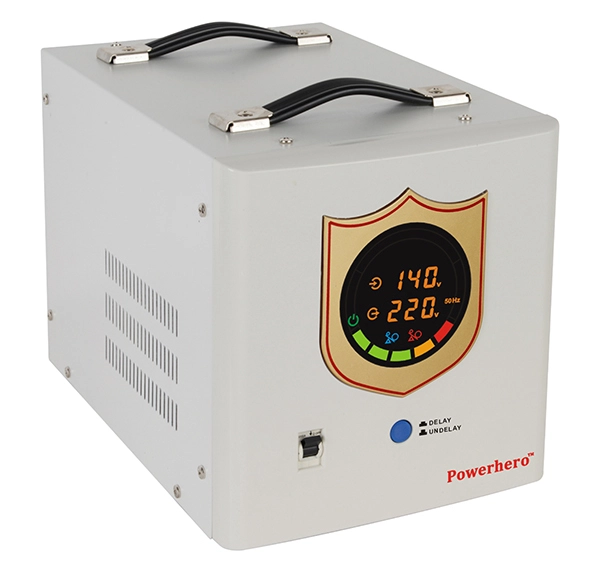

SHC Hybrid Servo Stabilizer SHC-5000

Model No.: SHC-5000
Brand Name: Powerhero
MOQ: 50 pcs
Payment Terms: 30% deposit then 70% balance before loading
Date Of Delivery: 15~ 20days after deposit
Place Of Origin: Huizhou, Guangdong Province, China

Feature:
Compatible servo motor type & relay type AVR features
With servo motor type AVR high precision while without the instant high voltage surge
With relay type AVR quick response reach high precision
Authentic zero crossing technology
Taylor made C.R.G.O transformers
High performance and high speed MCU control
Display are optional


Usage:
Air Conditioners, Water Pumps, TVs home appliances.

Model

SHC 130V-270V~

SHC-1000

SHC-1500

SHC-2000

SHC-3000

SHC-5000

SHC-8000

SHC-10000

Rated Capacity

1000VA

1500VA

2000VA

3000VA

5000VA

8000VA

10000VA

Phase

Single

Transformer

C.R.G.O. toroidal transformer

Indicator

LED graphic

Display Status

working and loading

Output

Frequency

50 / 60 Hz

Voltage

110 / 120 / 220 / 230 / 240 Vac optional

Precision

± 1%-3%

Protection

overload / high temperature / high voltage / low voltage / short circuit

Delay Function

delay / un delay (180 / 6 seconds selectable)

Efficiency

98%

Cooling System

Smart cooling for 3000Va and above

Environmental

Operating Temperature

0 - 40 ℃

Relative Humidity

10%~102% RH, non condensing

Storage Temperature

﹣15 - 45 ℃

Appearance

Size (Max. mm)

240x146x180

355x220x250

N.W. (kg) SHC

3.90

4.30

4.60

7.7

8.7

11.7

13.7

N.W. (kg) THC

4.40

4.80

5.10

8.2

9.2

12.2

14.2

Packing

Qty/Ctn

4

1

Carton Size (mm)

785x305x240

395x272x305

Carton G.W. (kg) SHC

17.60

19.20

20.40

8.50

9.50

12.50

14.50

Carton G.W. (kg) THC

19.60

21.20

22.40

9.00

10.00

13.00

15.00
