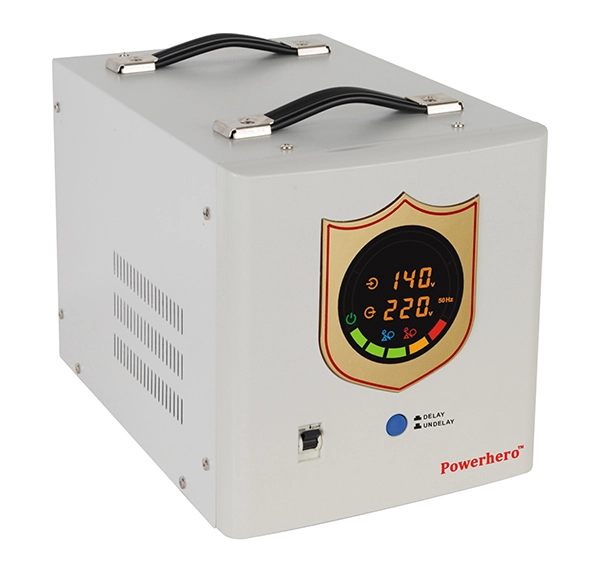

THC Hybrid Servo Stabilizer THC-10000

THC Hybrid Servo Stabilizer THC-10000
THC Hybrid Servo Stabilizer THC-10000
prev
  • THC Hybrid Servo Stabilizer THC-10000
next
  • THC Hybrid Servo Stabilizer THC-10000
  • Place of Origin: Guangdong, China
  • Brand Name: Powerhero
  • Inquire Online

Information

Brand Name: Powerhero
MOQ: 50 pcs
Payment Terms: 30% deposit then 70% balance before loading
Date Of Delivery: 15~ 20days after deposit
Place Of Origin: Huizhou, Guangdong Province, China

Feature:
Compatible servo motor type & relay type AVR features
With servo motor type AVR high precision while without the instant high voltage surge
With relay type AVR quick response reach high precision
Authentic zero crossing technology
Taylor made C.R.G.O transformers
High performance and high speed MCU control
Display are optional


Usage:
Air Conditioners, Water Pumps, TVs home appliances.

Model THC 110v-270v THC-1000 THC-1500 THC-2000 THC-3000 THC-5000 THC-8000 THC-10000
Rated Capacity 1000VA 1500VA 2000VA 3000VA 5000VA 8000VA 10000VA
Phase Single
Transformer C.R.G.O. toroidal transformer
Indicator LED graphic
Display Status working and loading
Output Frequency 50 / 60 Hz
Voltage 110 / 120 / 220 / 230 / 240 Vac optional
Precision ± 1%- 3%
Protection overload / high temperature / high voltage / low voltage / short circuit
Delay Function delay / un delay (180 / 6 seconds selectable)
Efficiency 98%
Cooling System Smart cooling for 3000Va and above
Environmental Operating Temperature 0 - 40 ℃
Relative Humidity 10%~ 102% RH, non condensing
Storage Temperature ﹣15 - 45 ℃
Appearance Size (Max. mm) 240x146x180 355x220x250
N.W. (kg) SHC 3.90 4.30 4.60 7.7 8.7 11.7 13.7
N.W. (kg) THC 4.40 4.80 5.10 8.2 9.2 12.2 14.2
Packing Qty/Ctn 4 1
Carton Size (mm) 785x305x240 395x272x305
Carton G.W. (kg) SHC 17.60 19.20 20.40 8.50 9.50 12.50 14.50
Carton G.W. (kg) THC 19.60 21.20 22.40 9.00 10.00 13.00 15.00
