WSKD-2000VA SOLAR INVERTER 1
WSKD-2000VA SOLAR INVERTER 1

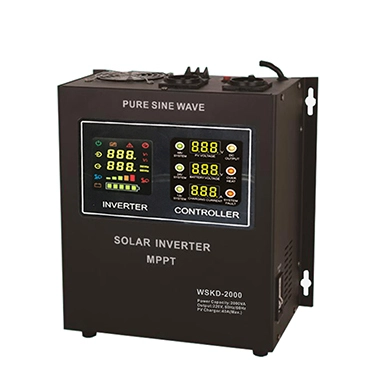

WSKD-2000VA SOLAR INVERTER

2000VA Pure sine wave solar Inverter 1) Built-in high efficiency MPPT(Max Power Point Tracking) solar charger controller; 2) True C.R.G.O toroidal transformer, lower static loss, more energy saving; 3) Double CPU control, higher reliability; 4) PV
5.0
Place of Origin:
Guangdong, China
Brand Name:
Powerhero
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    WD-series Double displayer Pure sine wave solar inverter
    Model WSKD-2000 WSKD-2500 WSKD-3000 WSKD-5000
    Rated Power 1400W 1800W 2100W 3500W
    Battery voltage 24Vdc 24Vdc 48Vdc 48Vdc
    Working PV-->BAT-->AC/AC-->PV-->BAT/PV-->AC-->BAT optional
    PV Input voltage range 30V-90Vdc 60V-90Vdc
    Max. charge current 10A/20A/30A/40A 60A
    Max. conversion effciency 98%
    Display Panel indicator light LED graphic screen+LED lights
    Mains status Optional  Input voltage range 140-275Vac
    Input frequency range 45Hz-65Hz(auto transfer to inverter mode when over frequency)
    Output voltage range 195-240Vac
    Input PF.(AC/DC 98%
    Efficiency Mains mode
    Charge Current 10A
    Mains overload warning until load decrease
    Short circuit Yes
    Inverter Output Inverter output voltage 220V+-3%
    Output frequency 50Hz/60Hz+- 0.3Hz
    Output power factor 》=0.8
    Waveform distortion linear load<=3%
    PV-AC transfer time 4ms typical value Max. 6ms
    Efficiency inverter mode>=80%
    Inverter overload 110-130% shutdown at 30s;130-150% shutdown at 3s
    Short circuit system automatically shut down
    Alarm Mains abnormal 1time/1ssilence auto after 5s/ 5s
    Low battery 1time/1s and flash battery last grid
    Overload 1time/1s and display"overload" grid
    Communication interface RS232
    Others Output socket universal socket/customized
    Surge protection optuional
    Ambient temperature 0-40°
    Ambient 10%-90%RH,non-condesing
    Noise <=50db
    Machine dimension (mm) 310x312x167 540x330x130
    Qty/Ctn  1
    Packing dimension 420x400x265 645x435x245
    Packing weight 14 15.8 22 26
