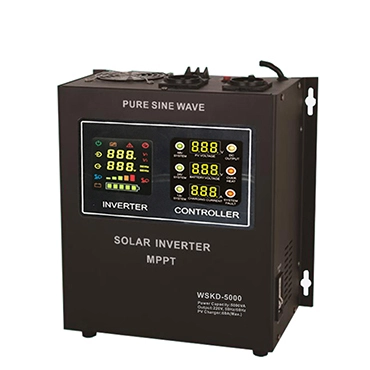

WSKD-5000VA SOLAR INVERTER1
1) Built-in high efficiency MPPT(Max Power Point Tracking) solar charger controller;
2) True C.R.G.O toroidal transformer, lower static loss, more energy saving;
3) Double CPU control, higher reliability;
4) PV priority mode or AC priority mode opt
5.0
like
Place of Origin:
Guangdong, China
Brand Name:
Powerhero
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| WD-series Double displayer Pure sine wave solar inverter | |||||
| Model | WSKD-2000 | WSKD-2500 | WSKD-3000 | WSKD-5000 | |
| Rated Power | 1400W | 1800W | 2100W | 3500W | |
| Battery voltage | 24Vdc | 24Vdc | 48Vdc | 48Vdc | |
| Working | PV-->BAT-->AC/AC-->PV-->BAT/PV-->AC-->BAT optional | ||||
| PV | Input voltage range | 30V-100Vdc | 60V-100Vdc | ||
| Max. charge current | 10A/20A/30A/40A | 60A | |||
| Max. conversion effciency | 98% | ||||
| Display | Panel indicator light | LED graphic screen+LED lights | |||
| Mains status and optional | Input voltage range | 140-275Vac | |||
| Input frequency range | 45Hz-65Hz(auto transfer to inverter mode when over frequency) | ||||
| Output voltage range | 195-240Vac | ||||
| Input PF.(AC/DC | 98% | ||||
| Efficiency | Mains mode | ||||
| Charge Current | 10A | ||||
| Mains overload | warning until load decrease | ||||
| Short circuit | Yes | ||||
| Inverter Output | Inverter output voltage | 220V+-3% | |||
| Output frequency | 50Hz/60Hz+- 0.3Hz | ||||
| Output power factor | 》=0.8 | ||||
| Waveform distortion | linear load<=3% | ||||
| PV-AC transfer time | 4ms typical value Max. 6ms | ||||
| Efficiency | inverter mode>=80% | ||||
| Inverter overload | 110-130% shutdown at 30s；130-150% shutdown at 3s | ||||
| Short circuit | system automatically shut down | ||||
| Alarm | Mains abnormal | 1time/1ssilence auto after 5s/ 5s | |||
| Low battery | 1time/1s and flash battery last grid | ||||
| Overload | 1time/1s and display"overload" grid | ||||
| Others | Output socket | universal socket/customized | |||
| Surge protection | optuional | ||||
| Ambient temperature | 0-40° | ||||
| Ambient | 10%-90%RH，non-condesing | ||||
| Noise | <=50db | ||||
| Machine dimension (mm) | 310x312x167 | 540x330x130 | |||
| Qty/Ctn | 1 | ||||
| Packing dimension | 420x400x265 | 645x435x245 | |||
| Packing weight | 14 | 15.8 | 22 | 26 | |
