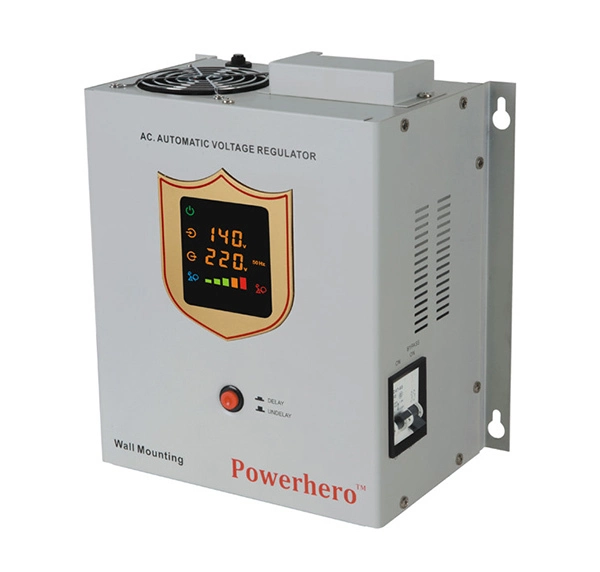

WTBR-20000 Wall Mounting Stabilizer
5.0
like
Place of Origin:
Guangdong, China
Brand Name:
Powerhero
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
With a 19,000m2 factory, 8 production lines and over 150 well-trained workers, we have the complete production chain. And all products export from us must strictly pass IQC inspections on critical components, 100% online testing, under loading and burn-in testing. Quality-assured products are our voice to all the worlds.
![WTBR-20000 Wall Mounting Stabilizer 2]()
Powerhero factory
![WTBR-20000 Wall Mounting Stabilizer 3]()
burn-in testing line
![WTBR-20000 Wall Mounting Stabilizer 4]()
Power supply workshop
Powerhero factory
burn-in testing line
Power supply workshop
| Series | WTBR-1000 | WTBR-1500 | WTBR-2000 | WTBR-3000 | WTBR-5000 | WTBR-8000 | WTBR-10000 | WTBR-15000 | WTBR-20000 | |
| Rated Capacity | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | 8000VA | 10000VA | 15000VA | 20000VA | |
| Phase | Single | |||||||||
| Transformer | C.R.G.O. toroidal transformer | |||||||||
| Indicator | LED graphic | |||||||||
| Display Status | normal working /time delay / overheat / unusual/ over load / over voltage / under voltage | |||||||||
| Input range | 100Vac-260Vac | |||||||||
| Output | Frequency | 50/60 Hz | ||||||||
| Voltage | 110/120/220/230/240 Vac optional | |||||||||
| Precision | ± 8%-10% | |||||||||
| Protection | overload / high temperature / high voltage / low voltage / short circuit | |||||||||
| Delay Function | delay / un-delay (180/6 seconds selectable) | |||||||||
| Efficiency | 98% | |||||||||
| Cooling System | Smart cooling for 3000Va and above | |||||||||
| Environmental | Operating Temperature | 0 - 40 ℃ | ||||||||
| Relative Humidity | 10%~102% RH, non-condensing | |||||||||
| Storage Temperature | ﹣15 - 45 ℃ | |||||||||
| Appearance | Size (Mac. mm) | 230x225x125 | 260x275x149.5 | 311x311x168 | 387x340x200 | |||||
| N.W. (kg) | 3.30 | 3.90 | 4.30 | 6.50 | 8.20 | 12.20 | 13.50 | 18.1 | 24 | |
| Packing | Qty/Ctn | 4 | 2 | 1 | 1 | |||||
| Carton Size (mm) | 606x572x207 | 666x327x233 | 386x382x250 | 527x282x382 | ||||||
| Carton G.W. (kg) | 15.20 | 17.60 | 19.20 | 14.60 | 18.00 | 13.20 | 14.50 | 19.3 | 25.2 | |
