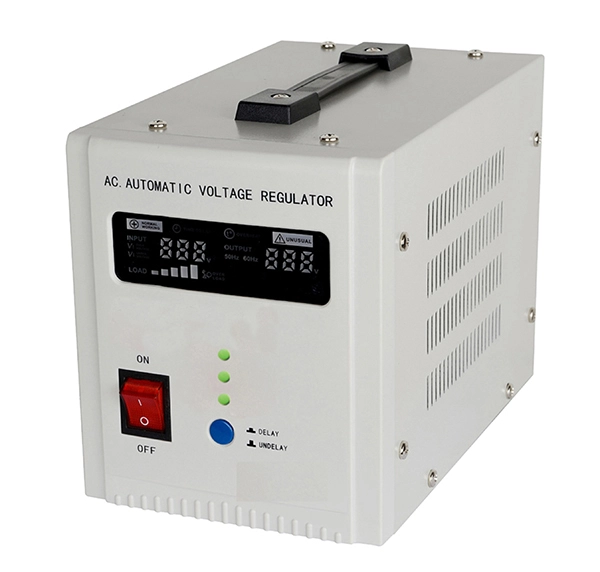

E Series Voltage Stabilize SER-1000

E Series Voltage Stabilize SER-1000
E Series Voltage Stabilize SER-1000
prev
  • E Series Voltage Stabilize SER-1000
  • SER-1000 stabilizer
next
  • E Series Voltage Stabilize SER-1000
  • Place of Origin: Guangdong, China
  • Brand Name: Powerhero
  • Inquire Online

Information

Automatic voltage Regulator (AVR) is designed to automatically maintain voltage which consists of voltage regulation circuit, control circuit and servo motors. When input voltage or loading changed, control circuit can sample and magnify, then drive the rotation of servo-motor and change the position of voltage regulator’s carbon bush. It finally maintains stable voltage through automatically adjusting the ratio of inductor.
  Automatic voltage stabilizer can maintain stable voltage for protecting different types of equipments and appliances.
  Precautions are as follow:
1 、No strong vibration and corrosive liquid.
2 、Keep clean inside
3 、Operate the machine according to machine operation manual.
4、Don’t watering AVR.
5、Contact us if you have another difficult issues on our product.








Quick Details
Place Of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: SER-1000VA
Usage: plastic face panel
Phase: Single Phase
Current Type: AC
Color: White
Display: LED graphic
Transformer Type: T.C.R.G.O.


Packaging & Delivery

Packaging Details: Machine Size: 230x145x180mm
Carton Size:785x272x305mm 4PCS / CTN
G.W.: 9kgs
Delivery Detail: 7- 35 days


Specifications
1, Relay TypeStabilizer
2, Input voltage range: 140~ 260 Vac, 50 / 60Hz
3, Output: 220 / 110 Vac
4, CE approval


Applications:
Computer, test equipments, lighting equipment, duplicators, stereo sound equipment, auto process control equipment, TV, office appliances, etc


Description:

SERSeries AVR is integrated the self develop patent control mode, achieved theauthentic zero crossing technology, which makes the relays switching on / offat the zero point, it reduces the shock to the relays and to the loads at theswitching point, so that you can gain more smooth output and more durablerelays. High performance and high speed MCU guarantees faster responding timeand its independent SMT processing MCU controlling board further guarantees thebest reliability.


Model SER-1000 SER-2000 SER-3000 SER-5000 SER-8000
Rated Capacity 1000VA 2000VA 3000VA 5000VA 8000VA
Phase Single
Transformer C.R.G.O. toroidal transformer
Indicator LED graphic
Display Status working and loading
Input Voltage 140~ 260 Vac
Frequency 50 / 60 Hz
Output Voltage 110 / 120 / 220 / 230 / 240 Vac optional
Precision ±8%
Protection Overload Yes
High temperature Yes
High/low voltage Yes
Short circuit Yes
Delay Function delay / un delay (180 / 6 seconds selectable)
Efficiency 98%
Cooling system Smart cooling for 3000Va and above
Environmental Operating temperature 0 - 40 °C
Relative humidity 10%~102% RH, non condensing
Storage temperature -15 - 45 °C
Appearance AVR size (mm) 230x145x180 355x220x250
AVR N.W. (kg) 3.00 3.70 6.80 7.80 10.60
Inner box size (mm) 293x190x225 395x272x305
Qty/Ctn 4 1
Carton size (mm) 785x305x240 395x272x305
Carton G.W. (kg) 13.80 16.60 7.60 8.60 11.40
