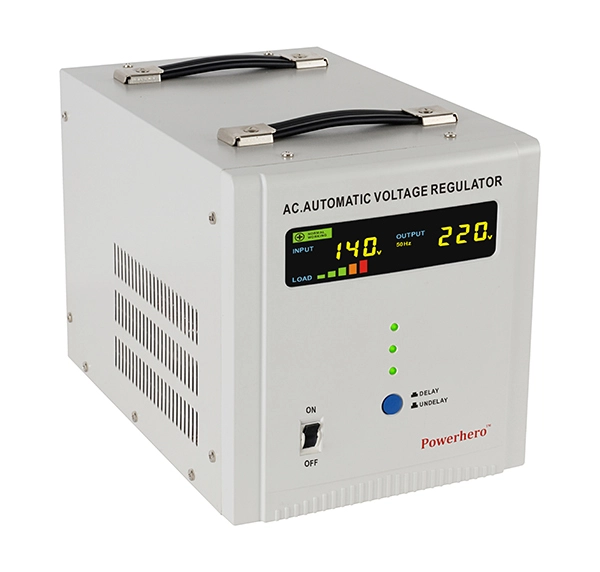

E Series Voltage Stabilize SER-8000

Voltage Stabilize SER-8000
Voltage Stabilize SER-8000
prev
  • Voltage Stabilize SER-8000
next
  • E Series Voltage Stabilize SER-8000
  • Place of Origin: Guangdong, China
  • Brand Name: Powerhero
  • Inquire Online

Information

 Foundeded in 2001, Huizhou Yinghua Electronic Co., LTD. is a professional manufacturer and solution provider of high-quality automatic voltage stabilizers ranging from 500VA to 20kVA, Solar integrated inverters and UPS ranging from 500VA to 10kVA, transformers and converters. With brand  Powerhero and experienced workers, we turn out 50,000 units monthly. Yinghua has been a pioneer of technology since we explored the key technology of aluminum transformer production and we also became the first aluminum transformer supplier. We invested a lot on our R&D team which has designed high performance MCU controlled circuit.

hardware workshop

Quick Details
Place Of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: SER-8000
Usage: SVC
Phase: Single Phase
Current Type: AC
Type: Relay Type
Display: Graphic display
Transformer: T.C.R.G.O.

Packaging & Delivery

Packaging Details: 1 piece with 1 individual box
Delivery Detail: Within 30 days after receiving the deposit


Specifications
Patent technology AC voltage Stabilizers
Input: 140Vac- 260Vac
Output: 220vac, 50hz / 60hz
LED colorful display shows full status

Applications:
Computer,test equipments, lighting equipment, duplicators, stereo sound equipment, auto process control equipment, TV, office appliances, etc


Description:
TER Series AVR is integrated the self develop patent control mode, achieved the authentic zero crossing technology, which makes the relays switching on / offat the zero point, it reduces the shock to the relays and to the loads at the switching point, so that you can gain more smooth output and more durable relays. High performance and high speed MCU guarantees faster responding time and its independent SMT processing MCU controlling board further guarantees the best reliability.


Model SER-1000 SER-3000 SER-5000 SER-8000 SER-10000
Rated Capacity 1000VA 3000VA 5000VA 8000VA 10000VA
Phase Single
Transformer T.C.R.G.O. toroidal transformer
Indicator LED graphic
Display Status working and loading
Input Voltage 140~ 260 Vac
Frequency 50 / 60 Hz
Output Voltage 110 / 120 / 220 / 230 / 240 Vac optional
Precision ±8%
Protection Overload Yes
High temperature Yes
High/low voltage Yes
Short circuit Yes
Delay Function delay / un delay (180 / 6 seconds selectable)
Efficiency 98%
Cooling system Smart cooling for 3000Va and above
Environmental Operating temperature 0 - 40 °C
Relative humidity 10%~102% RH, non condensing
Storage temperature -15 - 45 °C
Appearance AVR size (mm) 230x145x180 355x220x250
AVR N.W. (kg) 3.0 7.0 7.8 10.6 12.30
Inner box size (mm) 293x190x225 395x272x305
Qty/Ctn 4 1
Carton size (mm) 785x305x240 395x272x305
Carton G.W. (kg) 13.8 7.60 8.90 11.70 13.40
