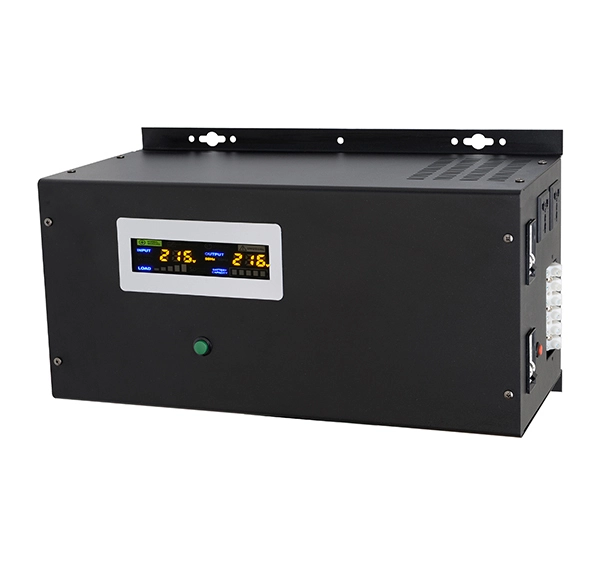

SME pure sine wave inverter 2400

SME pure sine wave inverter 2400
SME pure sine wave inverter 2400
  • SME pure sine wave inverter 2400
  • SME pure sine wave inverter 2400
  • Place of Origin: Guangdong, China
  • Brand Name: Powerhero
  • Inquire Online


SME Series Pure sine wave inverter

 Foundeded in 2001, Huizhou Yinghua Electronic Co., LTD. is a professional manufacturer and solution provider of high-quality automatic voltage stabilizers ranging from 500VA to 20kVA, Solar integrated inverters and UPS ranging from 500VA to 10kVA, transformers and converters. With brand  Powerhero and experienced workers, we turn out 50,000 units monthly. Yinghua has been a pioneer of technology since we explored the key technology of aluminum transformer production and we also became the first aluminum transformer supplier. We invested a lot on our R&D team which has designed high performance MCU controlled circuit.

hardware workshop

Quick Details
* Place of Origin: Guangdong, China (Mainland)
* Brand Name: Powerhero
* Model Number: SME2400
* Output Power: 2400W
* AC charging current selected 20A/40A
* NO-loading current less than 2.5A
* Size: 580*330*275mm
* Type: DC/AC Inverters
* Output Frequency: 50HZ/60HZ
Packaging & Delivery
Packaging Details: Export special carton
Delivery Detail: 20 days


Powerful 300% surge power
Big charging current, 3 stage battery charger
A true sine wave with very low harmonic distortion
True C.R.G.O toroidal transformer, lower static loss, more energy-saving
32-bit high speed MCU control with accurate detection

Model  SME1000 SME1200 SME1400 SME1600 SME2100 SME2400 SME3000 SME3500
Rated Power 1000W 1200W 1400W 1600W 2100W  2400W 3000W 3500W
Surge Protection Power 3000W 3600W 4200W 4800W 6300W 7200W 9000W 10500W
NO-LOADING Current (DC mode)   <2.5A
Transformer C.R.G.O
Interface LED graphic
Display Status working & loading & battery
Input Voltage 140~275 Vac
Frequency 45~65 Hz
Output Voltage 220Vac ±1% for inverter; 220Vac ±8% for regulator
Frequency 50/60 Hz ± 0.5Hz, subject to the main
Wave form Pure sinve wave
Wave distortion ≤ 3%
Protection Overload, High temperature, Output high/low voltage, Battery low voltage, Short circuit, Over-charge, over-discharge
Transfer Time ≤ 6ms
Battery Voltage 12V DC 12V DC 12V DC 12V DC 24V DC 24V DC 24V DC 24V DC
Charge Voltage 13.8V±0.5V 13.8V±0.5V 13.8V±0.5V 13.8V±0.5V 27.6V±0.5V 27.6V±0.5V 27.6V±0.5V 27.6V±0.5V
Low Battery Voltage Limit 11V ±0.5V  11V ±0.5V  11V ±0.5V  11V ±0.5V  22V ±1V 22V ±1V 22V ±1V 22V ±1V
Battery Low Voltage Protection Point  10.5V ±0.5V   10.5V ±0.5V   10.5V ±0.5V   10.5V ±0.5V   21V ±1V 21V ±1V 21V ±1V 21V ±1V
Charge Current 20A /40A selectable
Charge Mode 3-stage: bulk, boost, float
Cooling system Yes
Environmental Operating temperature 0 - 40 ℃
Relative humidity 10%~90% RH, non-condensing
Storage temperature ﹣15 - 45 ℃
Packing  Machine Size (mm) 507*330*275
Qty/ Ctn 1
Carton Size (mm) 580*345*290
