L Series Modified Sinewave Inverter LSB-1650 1
L Series Modified Sinewave Inverter LSB-1650 1

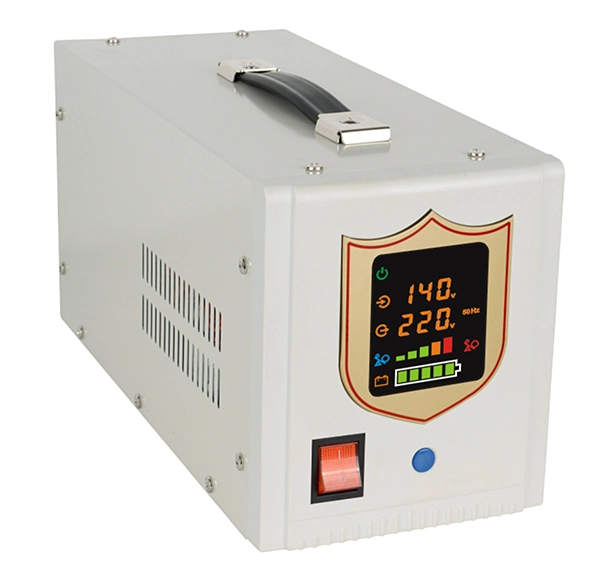

L Series Modified Sinewave Inverter LSB-1650


    no product data.

    Go to homepage

    Quick Details
    Place Of Origin: Guangdong, China (Mainland)
    Brand Name: Powerhero
    Model Number: LSE-1650VA
    Output Power: 1- 2KW
    Output Type: Single
    Size: 240x146x180mm
    Weight: 4Kgs
    Input Voltage: 40V~ 265V
    Output Voltage: 110V / 220V
    Type: DC / AC Inverters
    Output Frequency: 45hz~ 65hz
    Output Current: 1.4A
    Color: Black
    Display: LED graphic
    Type: Vertical

    Packaging & Delivery

    Packaging Details: Carton Size (LxWxH mm): 785x305x240
    Delivery Detail: 7- 30 days


    Power Inverters
    1, Input Voltage Range: 140V~ 265V
    2, Output: 220V, 50 / 60Hz
    3, DC: 24V
    4, Polarity reversed protection

    Powerhero LSB series simulated sine wave inverter is the best replacement of high frequency inverter. Its unique design makes it ultra strong adaptive capacity of loading. Can work for refrigerator and air conditioner. Low battery bank can do high power capacity, such as 12V battery, can be up to 1200W, 24V battery bank can be upto 2400W. We have range from 500VA to 4000VA, with big charging current, which can reach 30A. Its AVR function can give you stable voltage at mains mode.

    1. Best replacement of high frequency inverter
    2. Ultra strong adaptive capacity of loading, can work for refrigerator and airconditioner
    3. Mean time between failures (MTBF) is 5- 10 times longer than high frequency inverter
    4. With AVR function, wide range 140V- 265V

    Model LSE-500 LSE -750 LSE -1000 LSE -1300 LSE -1650 LSE -2000
    Rated Power 300W 450W 600W 800W 1000W 1200W
    Transformer C.R.G.O. toroidal transformer
    Interface LED graphic
    Display Status working & loading & battery
    Input Voltage 140- 265V
    Frequency 45Hz - 65Hz
    Output Voltage 220Vac ±3% for inverter; 220Vac ±10% for avr
    Frequency 50/60 Hz ± 0.5Hz, subject to the main
    Wave Form modified sine wave
    Protection overload / high temperature / output high / low voltage
    Full Protections overload / short circuit / high temperature / outputhigh / low voltage / over charge / over-discharge/ low volatge / high voltage
    BatteryProtection low voltage protection / over charge / over discharge /reversed polarity / short circuit
    Transfer Time ≤ 6ms
    Battery Voltage 12V DC 12V DC 12V DC 12V DC 24V DC 24V DC
    Charge Voltage 13.8V±5V 13.8V±5V 13.8V±5V 13.8V±5V 27.6V±0.5V 27.6V±0.5V
    Low BatteryVoltage Limit 11V±0.5V 11V±0.5V 11V±0.5V 11V±0.5V 22V±1V 22V±1V
    Battery LowVoltage Protection Point 10.5V±0.5V 10.5V±0.5V 10.5V±0.5V 10.5V±0.5V 21V±1V 21V±1V
    Charge Current Max. 23A
    Cooling System Yes
    Alarming over load / short circuit / battery low volatge /unusual
    Overload 1 seconds for warning first, then continous beeping
    Battery Working Low Voltage souds every seconds
    Protection orOutput Abnormal continuous beeping
    Operating Temperature 0 -40 °C
    Relative Humidity 10%~90% RH, non condensing
    Storage Temperature -15 -45 °C
    Qty/Ctn 4 2
    Carton Size (mm) 785x305x240 410x395x240
    Carton G.W. (kg) 21 23 26 9 9.8 10
