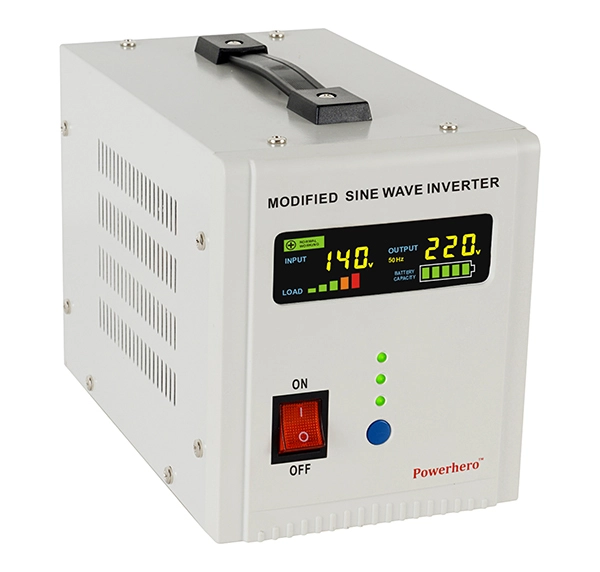

L Series Modified Sinewave Inverter LSE-500
Quick Details
Place Of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: LSE-500VA
Output Power: 1- 2KW
Output Type: Single
Size: 240x146x180mm
Weight: 4Kgs
Input Voltage: 40V~ 265V
Output Voltage: 110V / 220V
Type: DC / AC Inverters
Output Frequency: 45hz~ 65hz
Output Current: 1.4A
Color: Black
Display: LED graphic
Type: Vertical
Packaging & Delivery
| Packaging Details: | Carton Size (LxWxH mm): 785x305x240 |
| Delivery Detail: | 7- 30 days |
Specifications:
Power Inverters
1, Input Voltage Range: 140V~ 265V
2, Output: 220V, 50 / 60Hz
3, DC: 24V
4, Polarity reversed protection
Powerhero LSB series simulated sine wave inverter is the best replacement of high frequency inverter. Its unique design makes it ultra strong adaptive capacity of loading. Can work for refrigerator and air conditioner. Low battery bank can do high power capacity, such as 12V battery, can be up to 1200W, 24V battery bank can be upto 2400W. We have range from 500VA to 4000VA, with big charging current, which can reach 30A. Its AVR function can give you stable voltage at mains mode.
1. Best replacement of high frequency inverter
2. Ultra strong adaptive capacity of loading, can work for refrigerator and airconditioner
3. Mean time between failures (MTBF) is 5- 10 times longer than high frequency inverter
4. With AVR function, wide range 140V- 265V
| Model | LSE-500 | LSE -750 | LSE -1000 | LSE -1300 | LSE -1650 | LSE -2000 | |
| Rated Power | 300W | 450W | 600W | 800W | 1000W | 1200W | |
| Transformer | C.R.G.O. toroidal transformer | ||||||
| Interface | LED graphic | ||||||
| Display Status | working & loading & battery | ||||||
| Input | Voltage | 140- 265V | |||||
| Frequency | 45Hz - 65Hz | ||||||
| Output | Voltage | 220Vac ±3% for inverter; 220Vac ±10% for avr | |||||
| Frequency | 50/60 Hz ± 0.5Hz, subject to the main | ||||||
| Wave Form | modified sine wave | ||||||
| Protection | overload / high temperature / output high / low voltage | ||||||
| Full Protections | overload / short circuit / high temperature / outputhigh / low voltage / over charge / over-discharge/ low volatge / high voltage | ||||||
| BatteryProtection | low voltage protection / over charge / over discharge /reversed polarity / short circuit | ||||||
| Transfer Time | ≤ 6ms | ||||||
| Battery Voltage | 12V DC | 12V DC | 12V DC | 12V DC | 24V DC | 24V DC | |
| Charge Voltage | 13.8V±5V | 13.8V±5V | 13.8V±5V | 13.8V±5V | 27.6V±0.5V | 27.6V±0.5V | |
| Low BatteryVoltage Limit | 11V±0.5V | 11V±0.5V | 11V±0.5V | 11V±0.5V | 22V±1V | 22V±1V | |
| Battery LowVoltage Protection Point | 10.5V±0.5V | 10.5V±0.5V | 10.5V±0.5V | 10.5V±0.5V | 21V±1V | 21V±1V | |
| Charge Current | Max. 23A | ||||||
| Cooling System | Yes | ||||||
| Alarming | over load / short circuit / battery low volatge /unusual | ||||||
| Overload | 1 seconds for warning first, then continous beeping | ||||||
| Battery Working Low Voltage | souds every seconds | ||||||
| Protection orOutput Abnormal | continuous beeping | ||||||
| Operating Temperature | 0 -40 °C | ||||||
| Relative Humidity | 10%~90% RH, non condensing | ||||||
| Storage Temperature | -15 -45 °C | ||||||
| Qty/Ctn | 4 | 2 | |||||
| Carton Size (mm) | 785x305x240 | 410x395x240 | |||||
| Carton G.W. (kg) | 21 | 23 | 26 | 9 | 9.8 | 10 | |
