 professional stabilizers & Inverters manufacturer and solution provider for 22 years

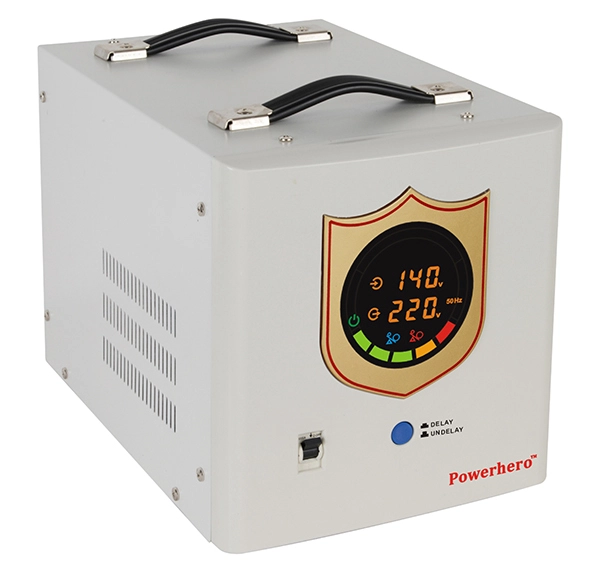

THC Hybrid Servo Stabilizer THC-5000 1
THC Hybrid Servo Stabilizer THC-5000 1

THC Hybrid Servo Stabilizer THC-5000

5.0
Place of Origin:
Guangdong, China
Brand Name:
Powerhero
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage
    Brand Name: Powerhero
    MOQ: 50 pcs
    Payment Terms: 30% deposit then 70% balance before loading
    Date Of Delivery: 15~ 20days after deposit
    Place Of Origin: Huizhou, Guangdong Province, China

    Feature:
    Compatible servo motor type & relay type AVR features;
    With servo motor type AVR high precision while without the instant high voltage surge;
    With relay type AVR quick response reach high precision;
    Authentic zero crossing technology
    Taylor made C.R.G.O transformers
    High performance and high speed MCU control
    Display are optional


    Usage:
    Air Conditioners, Water Pumps, TVs home appliances.


    Model THC 110v-270v THC-1000 THC-1500 THC-2000 THC-3000 THC-5000 THC-8000 THC-10000
    Rated Capacity 1000VA 1500VA 2000VA 3000VA 5000VA 8000VA 10000VA
    Phase Single
    Transformer C.R.G.O. toroidal transformer
    Indicator LED graphic
    Display Status working and loading
    Output Frequency 50 / 60 Hz
    Voltage 110 / 120 / 220 / 230 / 240 Vac optional
    Precision ± 1%- 3%
    Protection overload / high temperature / high voltage / low voltage / short circuit
    Delay Function delay / un delay (180 / 6 seconds selectable)
    Efficiency 98%
    Cooling System Smart cooling for 3000Va and above
    Environmental Operating Temperature 0 - 40 ℃
    Relative Humidity 10%~ 102% RH, non condensing
    Storage Temperature ﹣15 - 45 ℃
    Appearance Size (Max. mm) 240x146x180 355x220x250
    N.W. (kg) SHC 3.90 4.30 4.60 7.7 8.7 11.7 13.7
    N.W. (kg) THC 4.40 4.80 5.10 8.2 9.2 12.2 14.2
    Packing Qty/Ctn 4 1
    Carton Size (mm) 785x305x240 395x272x305
    Carton G.W. (kg) SHC 17.60 19.20 20.40 8.50 9.50 12.50 14.50
    Carton G.W. (kg) THC 19.60 21.20 22.40 9.00 10.00 13.00 15.00
