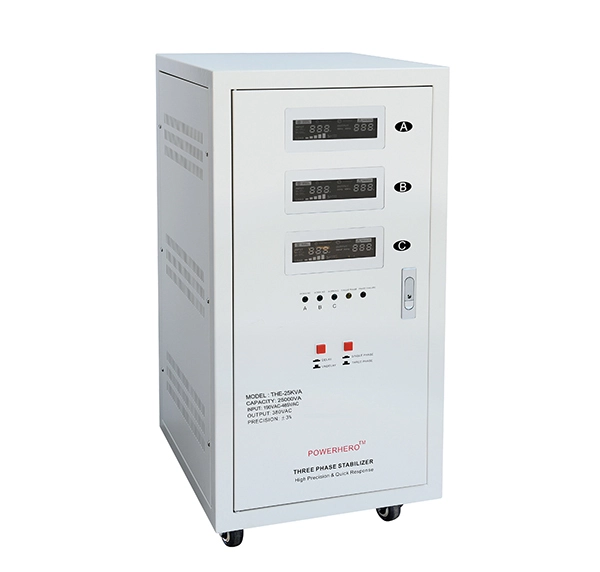

THE-25KVA

　Foundeded in 2001, Huizhou Yinghua Electronic Co., LTD. is a professional manufacturer and solution provider of high-quality automatic voltage stabilizers ranging from 500VA to 20kVA, Solar integrated inverters and UPS ranging from 500VA to 10kVA, transformers and converters. With brand  Powerhero and experienced workers, we turn out 50,000 units monthly. Yinghua has been a pioneer of technology since we explored the key technology of aluminum transformer production and we also became the first aluminum transformer supplier. We invested a lot on our R&D team which has designed high performance MCU controlled circuit.

Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: THE-25KVA
Usage: SVC
Phase: Three Phase
Current Type: AC
color: white
Display: LED graphic
type: servo motor type
control mode: MCU control

Packaging & Delivery
Packaging Details: Machine Size: 35*44*80CM
Carton Box: 55*64*120CM 1PCS/CTN,70 Kgs/CTN
Delivery Detail: 5-25 days

Specifications
15KVA three phase stabilizer
1, Phase Input range: 190-465Vac
2, Phase Output: 220V+/-3%, 50Hz/60Hz
3, Full protections

Model	SHE 130v-270v~	SHE-15000	SHE-25000	SHE-30000	SHE-45000	SHE-60000
	THE110v-270v~	THE-15000	THE-25000	THE-30000	THE-45000	THE-60000
Rated Capacity		15000VA	25000VA	30000VA	45000VA	60000VA
Phase		Three phase
Transformer		C.R.G.O. toroidal transformer
Indicator		LED graphic
Display Status		working and loading
Output	Frequency	50/60 Hz
	Voltage	110/120/220/230/240 Vac optional
	Precision	± 1%-3%
Protection		overload / high temperature / high voltage / low voltage / short circuit
Delay Function		delay / un-delay (180/6 seconds selectable)
Efficiency		98%
Cooling System		Smart cooling for 3000Va and above
Environmental	Operating Temperature	0 - 40 ℃
	Relative Humidity	10%~102% RH, non-condensing
	Storage Temperature	﹣15 - 45 ℃
Appearance	Size (Max. mm)	440*400*830
	N.W. (kg)SHE	39.2	50.3	58.6	76.5	103.6
	N.W. (kg)THE	40.3	51.2	60.0	78.6	105.2
Packing	Qty/Ctn	1
	Carton Size (mm)	520*485*1035
	Carton G.W. (kg)SHE	42.6	53.1	61.8	79.6	107.8
	Carton G.W. (kg)THE	43.1	54.2	62.9	80.2	108.3
