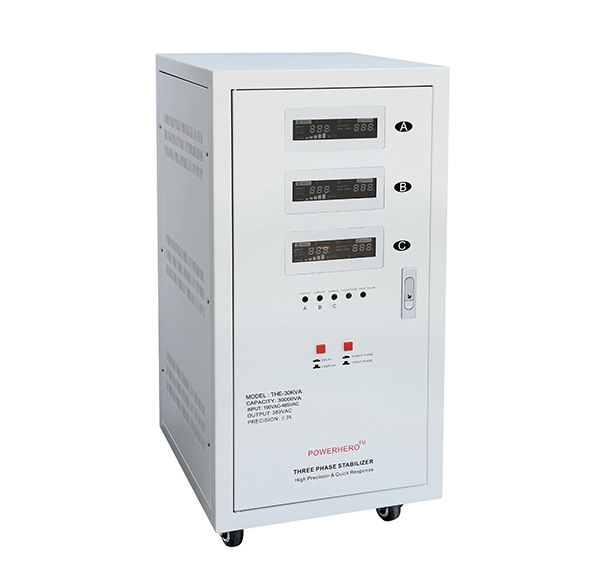

THE-30KVA

THE-30KVA
THE-30KVA
prev
  • THE-30KVA
next
  • THE-30KVA
  • Place of Origin: Guangdong, China
  • Brand Name: Powerhero
  • Inquire Online

Information

With a 19,000m2 factory, 8 production lines and over 150 well-trained workers, we have the complete production chain. And all products export from us must strictly pass IQC inspections on critical components, 100% online testing, under loading and burn-in testing. Quality-assured products are our voice to all the worlds.


Powerhero factory


burn-in testing line

Power supply workshop

Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: THE-30KVA
Usage: SVC
Phase: Three Phase
Current Type: AC
color: white
Display: LED graphic
type: servo motor type
control mode: MCU control

Packaging & Delivery
Packaging Details: Machine Size: 35*44*80CM
Carton Box: 55*64*120CM 1PCS/CTN, 85 Kgs/CTN
Delivery Detail: 5-25 days

Specifications
15KVA three phase stabilizer
1, Phase Input range: 190-465Vac
2, Phase Output: 220V+/-3%, 50Hz/60Hz
3, Full protections

Model SHE 130v-270v~ SHE-15000 SHE-25000 SHE-30000 SHE-45000 SHE-60000
THE110v-270v~ THE-15000 THE-25000 THE-30000 THE-45000 THE-60000
Rated Capacity 15000VA 25000VA 30000VA 45000VA 60000VA
Phase Three phase
Transformer C.R.G.O. toroidal transformer
Indicator LED graphic
Display Status working and loading
Output Frequency 50/60 Hz
Voltage 110/120/220/230/240 Vac optional
Precision ± 1%-3%
Protection overload / high temperature / high voltage / low voltage / short circuit
Delay Function delay / un-delay (180/6 seconds selectable)
Efficiency  98%
Cooling System Smart cooling for 3000Va and above
Environmental Operating Temperature 0 - 40 ℃
Relative Humidity 10%~102% RH, non-condensing
Storage Temperature ﹣15 - 45 ℃
Appearance Size (Max. mm)  440*400*830
N.W. (kg)SHE 39.2 50.3 58.6 76.5 103.6
N.W. (kg)THE 40.3 51.2 60.0 78.6 105.2
Packing  Qty/Ctn 1
Carton Size (mm)  520*485*1035
Carton G.W. (kg)SHE  42.6 53.1 61.8 79.6 107.8
Carton G.W. (kg)THE  43.1 54.2 62.9 80.2 108.3
