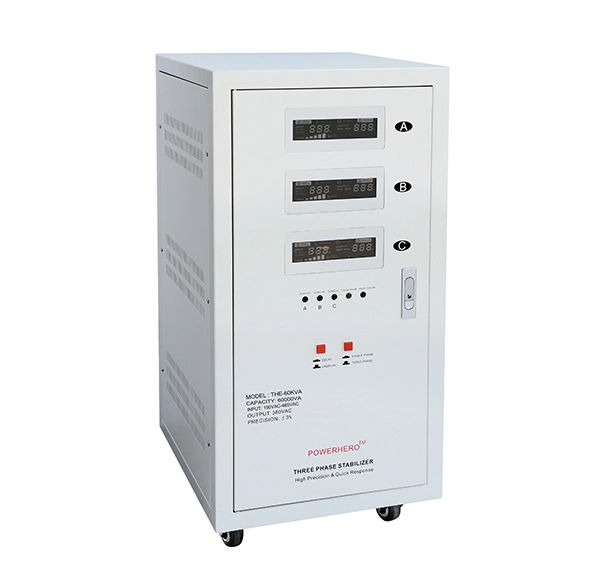

THE-60KVA

Phase Hybrid Stabilizer
Phase Hybrid Stabilizer
prev
  • Phase Hybrid Stabilizer
next
  • THE-60KVA
  • Place of Origin: Guangdong, China
  • Brand Name: Powerhero
  • Inquire Online

Information

Automatic voltage Regulator (AVR) is designed to automatically maintain voltage which consists of voltage regulation circuit, control circuit and servo motors. When input voltage or loading changed, control circuit can sample and magnify, then drive the rotation of servo-motor and change the position of voltage regulator’s carbon bush. It finally maintains stable voltage through automatically adjusting the ratio of inductor.
  Automatic voltage stabilizer can maintain stable voltage for protecting different types of equipments and appliances.
  Precautions are as follow:
1 、No strong vibration and corrosive liquid.
2 、Keep clean inside
3 、Operate the machine according to machine operation manual.
4、Don’t watering AVR.
5、Contact us if you have another difficult issues on our product.








Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: THE-60KVA
Usage: SVC
Phase: Three Phase
Current Type: AC
color: white
Display: LED graphic
type: servo motor type
control mode: MCU control

Packaging & Delivery
Packaging Details: Machine Size: 35*44*80CM
Carton Box: 55*64*120CM 1PCS/CTN,105Kgs/CTN
Delivery Detail: 5-25 days

Specifications
15KVA three phase stabilizer
1, Phase Input range: 190-465Vac
2, Phase Output: 220V+/-3%, 50Hz/60Hz
3, Full protections

Model SHE 130v-270v~ SHE-15000 SHE-25000 SHE-30000 SHE-45000 SHE-60000
THE110v-270v~ THE-15000 THE-25000 THE-30000 THE-45000 THE-60000
Rated Capacity 15000VA 25000VA 30000VA 45000VA 60000VA
Phase Three phase
Transformer C.R.G.O. toroidal transformer
Indicator LED graphic
Display Status working and loading
Output Frequency 50/60 Hz
Voltage 110/120/220/230/240 Vac optional
Precision ± 1%-3%
Protection overload / high temperature / high voltage / low voltage / short circuit
Delay Function delay / un-delay (180/6 seconds selectable)
Efficiency  98%
Cooling System Smart cooling for 3000Va and above
Environmental Operating Temperature 0 - 40 ℃
Relative Humidity 10%~102% RH, non-condensing
Storage Temperature ﹣15 - 45 ℃
Appearance Size (Max. mm)  440*400*830
N.W. (kg)SHE 39.2 50.3 58.6 76.5 103.6
N.W. (kg)THE 40.3 51.2 60.0 78.6 105.2
Packing  Qty/Ctn 1
Carton Size (mm)  520*485*1035
Carton G.W. (kg)SHE  42.6 53.1 61.8 79.6 107.8
Carton G.W. (kg)THE  43.1 54.2 62.9 80.2 108.3
