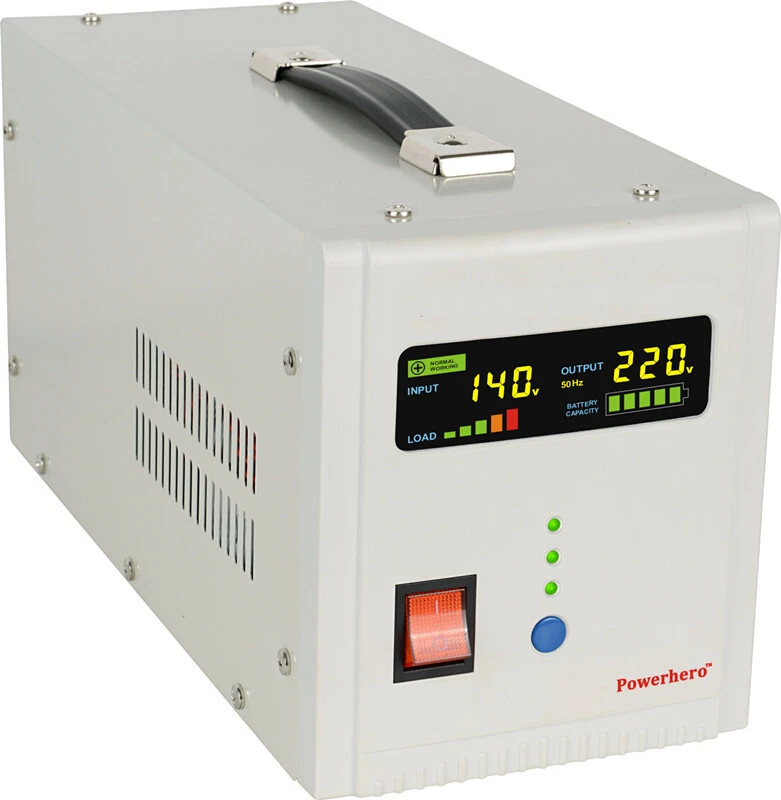

EPSI-1000 pure sine wave inverter

EPSI Series Pure sine wave inverter

Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: EPSI-1000
Output Power: 700W
AC charging current selected 10A/20A
NO-loading current less than 1.4A
Size: 337*146*170mm
Output Frequency: 50HZ/60HZ
LED Display selectable

Packaging & Delivery

Packaging Details:	Export special carton
Delivery Detail:	20days

Features :
With wide AVR range 140-275 Vac gives you stable voltage at mains mode
Big charging current, 3 stage battery charger
A true sine wave with very low harmonic distortion
True C.R.G.O toroidal transformer ,lower static loss, more energy-saving
32-bit high speed MCU control with accurate detection
Smart digital display
Integrated frequency automatic tracking technology, generator compatible

Model		EPSI-500	EPSI-800	EPSI-1000	EPSI-1500	EPSI-2000	EPSI-2500	EPSI-3000
Rated Capacity		500VA	800VA	1000VA	1500VA	2000VA	2500VA	3000VA
Rated Power		300W	500W	700W	1050W	1400W	1800W	2100W
Transformer		C.R.G.O
Interface		LED graphic
Display Status		working & loading & battery
Working Mode		PV(Photovoltaic priority) / AC（AC priority）Optional
Input	Voltage	140~275 Vac
	Frequency	45~65 Hz
Output	Voltage	220Vac ±3% for inverter;190V-245V for avr
	Frequency	50/60 Hz ± 0.3Hz, subject to the main
	Wave Form	Pure sinve wave
	Wave Distortion	≤ 3%
Protection		overload / high temperature / output high voltage / output low voltage / battery low voltage / short circuit / over-charge / over-discharge / reversed polarity(optional)
Transfer Time		≤ 4ms
Battery Voltage		12V DC	12V DC	12V DC	24V DC	24V DC	24V DC	48V DC
Charge Voltage		13.8V±0.5V	13.8V±0.5V	13.8V±0.5V	27.6V±0.6V	27.6V±0.6V	27.6V±0.6V	55V±1V
Low Battery Voltage Limit		10.9V ±0.3V	10.9V ±0.3V	10.9V ±0.3V	21.8V ±0.6V	21.8V ±0.6V	21.8V ±0.6V	42V ±1V
Battery Low Voltage Protection Point		10.2V ±0.3V	10.2V ±0.3V	10.2V ±0.3V	20.5V ±0.6V	20.5V ±0.6V	20.5V ±0.6V	41V ±1V
Charge Current		Max. 10A/15A/20A optional
Cooling System		Yes
Environmental	Operating Temperature	0 - 40 ℃
	Relative Humidity	10%~90% RH, non-condensing
	Storage Temperature	﹣15 - 45 ℃
Packing	Machine Size(mm)	230x145x180		337x146x170		355x220x250
	Qty/Ctn	4	4	2	2	1	1	1
	Carton Size (mm)	785x305x240		415x410x255		395x272x305
	Carton G.W. (kg)	22	26	17.2	19.1	13	14.8	16.1
