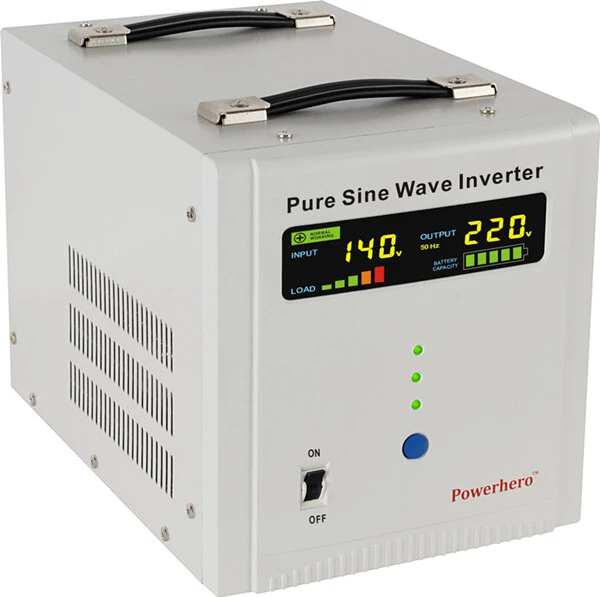

    EPSI Series Pure sine wave inverter

    Quick Details
    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Powerhero
    Model Number: EPSI-2000
    Output Power: 1400W
    AC charging current selected10A/20A.
    NO-loading current less than 1.2A
    Size: 355*220*250mm
    Output Frequency: 50HZ/60HZ
    LED Display selectable

    Packaging & Delivery
    Packaging Details:
    Export special carton
    Delivery Detail:

    Features :
    With wide AVR range 140-275 Vac gives you stable voltage at mains mode
    Big charging current, 3 stage battery charger
    A true sine wave with very low harmonic distortion
    True C.R.G.O toroidal transformer ,lower static loss, more energy-saving
    32-bit high speed MCU control with accurate detection
    Smart digital display
    Integrated frequency automatic tracking technology, generator compatible

    Model EPSI-500 EPSI-800 EPSI-1000 EPSI-1500 EPSI-2000 EPSI-2500 EPSI-3000
    Rated Capacity 500VA 800VA 1000VA 1500VA 2000VA 2500VA 3000VA
    Rated Power 300W 500W 700W 1050W 1400W 1800W 2100W
    Transformer C.R.G.O
    Interface LED graphic
    Display Status working & loading & battery
    Working Mode PV(Photovoltaic priority) / ACAC priorityOptional
    Input Voltage 140~275 Vac
    Frequency 45~65 Hz
    Output Voltage 220Vac ±3% for inverter;190V-245V for avr
    Frequency 50/60 Hz ± 0.3Hz, subject to the main
    Wave Form Pure sinve wave
    Wave Distortion ≤ 3%
    Protection overload / high temperature / output high voltage / output low voltage / battery low voltage / short circuit / over-charge / over-discharge / reversed polarity(optional)
    Transfer Time ≤ 4ms
    Battery Voltage 12V DC 12V DC 12V DC 24V DC 24V DC 24V DC 48V DC
    Charge Voltage 13.8V±0.5V 13.8V±0.5V 13.8V±0.5V 27.6V±0.6V 27.6V±0.6V 27.6V±0.6V 55V±1V
    Low Battery Voltage Limit 10.9V ±0.3V 10.9V ±0.3V 10.9V ±0.3V 21.8V ±0.6V 21.8V ±0.6V 21.8V ±0.6V 42V ±1V
    Battery Low Voltage Protection Point 10.2V ±0.3V 10.2V ±0.3V 10.2V ±0.3V 20.5V ±0.6V 20.5V ±0.6V 20.5V ±0.6V 41V ±1V
    Charge Current Max. 10A/15A/20A optional
    Cooling System Yes
    Environmental Operating Temperature 0 - 40 ℃
    Relative Humidity 10%~90% RH, non-condensing
    Storage Temperature ﹣15 - 45 ℃
    Packing Machine Size(mm) 230x145x180 337x146x170 355x220x250
    Qty/Ctn 4 4 2 2 1 1 1
    Carton Size (mm) 785x305x240 415x410x255 395x272x305
    Carton G.W. (kg) 22 26 17.2 19.1 13 14.8 16.1
