professional stabilizers & Inverters manufacturer and solution provider for 22 years
Place Of Origin: Guangdong, China (Mainland)

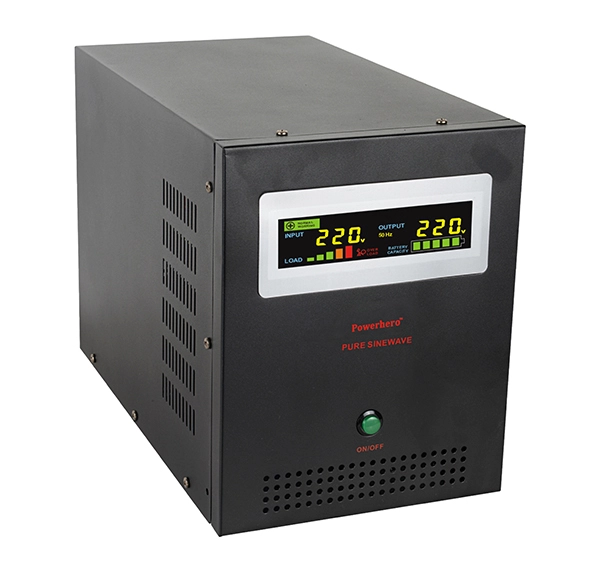

Brand Name: Powerhero
Model Number: PSE-2500
Output Power: 1800W
Output Type: Single
Input Voltage: 24VDC
Output Voltage: 220V
Type: DC / AC Inverters
Output Frequency: 50Hz / 60Hz
Case: Vertical type
Display: LED Graphic
Pure sine wave inverter can switch DC electric power into AC power. It also called UPS (Uninterrupted Power Supply). When AC power-down, inverter can contain power supply with DC power and ensure devices normal operation.
Pure sine wave inverter is widely used in various equipments, such as communication system, aviation, home application; emergency system, fire protection system, vehicle-mounted, boat-mounted, and stage devices. Pure sine wave inverter also can form an EPS (Emergency Power Supply) system.
Maintenance considerations are as follows:
1、Operating inverter according to users manuals.
2、Switch off when not in use.
3、Put inverter in a safe place to avoid shock.
4、Don’t put anything on the top of inverter
5、No excessive sun exposure.
6、Don’t watering inverter.
Packaging & Delivery
Machine Size (L x W x H mm): 400 x 200x 285
Carton Size (L x W x H mm): 475x 250x 400
|Delivery Detail:||7- 30 days|
1. Solar Power Inverter
2. Power capacity: 2500VA, 24VDC
3. With AVR function
4. With charger 10A / 20A
5. Output: 220V, 50Hz / 60Hz
Television, refrigerator, air condition, computer, electric fan, induction cooker,generator, printer, duplicators, lighting equipment, test equipment, and etc.
PSI-ESeries solar power inverter provides pure sine wave power for commercial,household and industrial applications. Capacity availability range from 500VAto 10,000VA, it can power most common electrical appliances in these fields.Unique toroidal transformer technology, make our UPS (inverter) a very lowexciting current which is the best application for solar system. Its individual AVR function make your appliance work very smooth even if mains power is notstable.
CPUcontrol, built in intelligent software offers high precision output.
PWM technology, pure sine wave output
Puresine wave output, suitable for all types of loading includesresistive load,inductive load, complex load…
Inhouse high quality toroidal transformer, gives you more reliable UPS (inverter)with lower exciting current
LED graphic human machine interface
Input/ output voltage and frequency, battery capacity, loading and etc can be showedon screen.
Sensitive short circuit protection
When short circuit happens, UPS (inverter) will shut down and giving warning.
Sensitive intelligent overload protection
On battery mode, overload more than 110%- 130%,UPS (inverter) will give warning (beeping) for 30 seconds, after 30 seconds, UPS (inverter) will switch off toavoid damage.
On battery mode, overload more than 130%- 150%, UPS (inverter) instantly switches off. On mains power model, overload will activate the beeping warning untilloading is reduced to normal range.
Shorter transfer time
<4ms, make sure your IT applications work smoothly
Whenmain power comes back, battery will be recharged automatically even UPS (inverter)was shut off. Charging current has High and Low sort to choose freely.
Atmains mode, UPS (inverter) can use as Automatic Voltage Regulator.
Full battery protection
Accurate charging and discharging current monitor and control. Intelligent battery auto repair function, extend battery lifespan
|NO-LOADING Current (DC mode)||<1.4A||<1.2A||<1.2A||<1.2A||<1.2A|
|Display Status||working & loading & battery|
|Input||Voltage||140~ 275 Vac|
|Frequency||45~ 65 Hz|
|Output||Voltage||220Vac ±1% for inverter; 220Vac ±8% for regulator|
|Frequency||50/60 Hz ± 0.5Hz, subject to the main|
|Wave form||Pure sinve wave|
|Wave distortion||≤ 3%|
|Output high/low voltage||Yes|
|Battery low voltage||Yes|
|Battery||Over charge, over discharge, reversed polarity protection (optional)|
|Transfer Time||≤ 4ms|
|Battery Voltage||12V DC||24V DC||24V DC||48V DC||48V DC|
|Low Battery Voltage Limit||-||11V ±0.5V||22V ±1V||22V ±1V||44V ±1V||44V ±1V|
|Battery Low Voltage Protection Point||-||10.5V ±0.5V||21V ±1V||21V ±1V||42V ±1V||42V ±1V|
|Charge Current||Max. 10- 20A Optional|
|Environmental||Operating temperature||0- 40 °C|
|Relative humidity||10%~ 90% RH, non condensing|
|Storage temperature||-15 -45 °C|
|Appearance||Inverter size (mm)||390x142x210||400x200x285||440x242x392|
|Inverter N.W. (kg)||5.60||9.20||13.20||17.20||23.60|
|Inner box size (mm)||440x183x260||475 x250x 400||525x310x475|
|Carton size (mm)||465x405x285||475 x250x 400||525x310x475|
|Carton G.W. (kg)||13.60||20.60||14.00||18.00||25.20|
