professional stabilizers & Inverters manufacturer and solution provider for 22 years

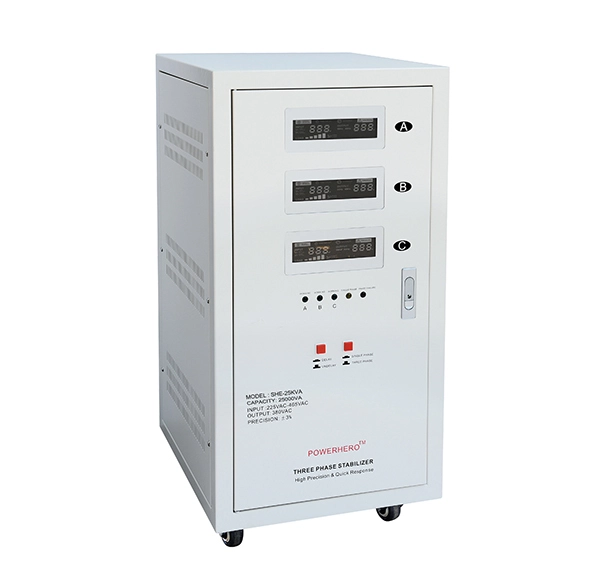

SHE-25KVA
5.0
like
Place of Origin:
Guangdong, China
Brand Name:
Powerhero
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: SHE-30KVA
Usage: SVC
Phase: Three Phase
Current Type: AC
color: white
Display: LED graphic
type: servo motor type
control mode: MCU control
Packaging & Delivery
Packaging Details: Machine Size: 35*44*80CM
Carton Box: 55*64*120CM 1PCS/CTN, 65 Kgs/CTN
Delivery Detail: 5-25 days
Specifications
30KVA three phase stabilizer
1, Phase Input range: 225-465Vac
2, Phase Output: 220V+/-3%, 50Hz/60Hz
3, Full protections
Place of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: SHE-30KVA
Usage: SVC
Phase: Three Phase
Current Type: AC
color: white
Display: LED graphic
type: servo motor type
control mode: MCU control
Packaging & Delivery
Packaging Details: Machine Size: 35*44*80CM
Carton Box: 55*64*120CM 1PCS/CTN, 65 Kgs/CTN
Delivery Detail: 5-25 days
Specifications
30KVA three phase stabilizer
1, Phase Input range: 225-465Vac
2, Phase Output: 220V+/-3%, 50Hz/60Hz
3, Full protections
| Model | SHE 130v-270v~ | SHE-15000 | SHE-25000 | SHE-30000 | SHE-45000 | SHE-60000 |
| THE110v-270v~ | THE-15000 | THE-25000 | THE-30000 | THE-45000 | THE-60000 | |
| Rated Capacity | 15000VA | 25000VA | 30000VA | 45000VA | 60000VA | |
| Phase | Three phase | |||||
| Transformer | C.R.G.O. toroidal transformer | |||||
| Indicator | LED graphic | |||||
| Display Status | working and loading | |||||
| Output | Frequency | 50/60 Hz | ||||
| Voltage | 110/120/220/230/240 Vac optional | |||||
| Precision | ± 1%-3% | |||||
| Protection | overload / high temperature / high voltage / low voltage / short circuit | |||||
| Delay Function | delay / un-delay (180/6 seconds selectable) | |||||
| Efficiency | 98% | |||||
| Cooling System | Smart cooling for 3000Va and above | |||||
| Environmental | Operating Temperature | 0 - 40 ℃ | ||||
| Relative Humidity | 10%~102% RH, non-condensing | |||||
| Storage Temperature | ﹣15 - 45 ℃ | |||||
| Appearance | Size (Max. mm) | 440*400*830 | ||||
| N.W. (kg)SHE | 39.2 | 50.3 | 58.6 | 76.5 | 103.6 | |
| N.W. (kg)THE | 40.3 | 51.2 | 60.0 | 78.6 | 105.2 | |
| Packing | Qty/Ctn | 1 | ||||
| Carton Size (mm) | 520*485*1035 | |||||
| Carton G.W. (kg)SHE | 42.6 | 53.1 | 61.8 | 79.6 | 107.8 | |
| Carton G.W. (kg)THE | 43.1 | 54.2 | 62.9 | 80.2 | 108.3 | |
