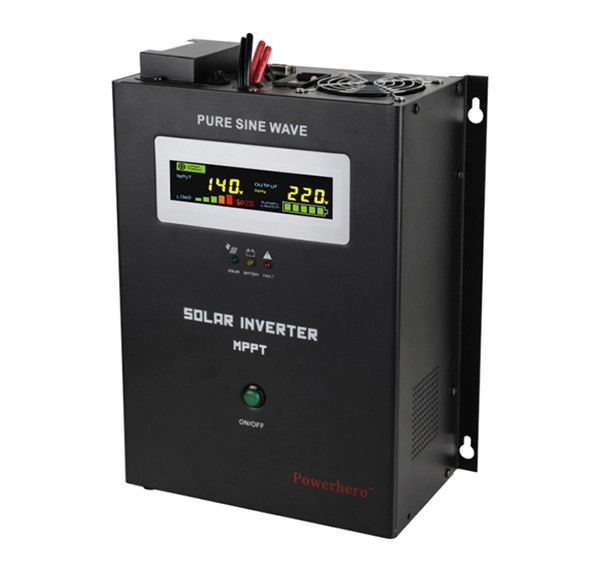

WS Series Solar Inverters WSKE-1500

Quick Details
Place Of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: WSKE-1500VA
Output Power: 1050W
Output Type: Single
Size: 384x219x 275
Weight: 10.8Kgs
Input Voltage: 24VDC
Output Voltage: 110V / 120V / 220V / 230V / 240V optional
Type: DC / AC Inverters
Output Frequency: 50Hz / 60Hz
Color: Black
Case: Vertical type
Display: LED Graphic

Packaging & Delivery

Packaging Details:	Machine Size(LxWxH mm): 384 x 219 x 275 Carton Size(LxWxH mm): 455x 280x 350
Delivery Detail:	7- 30 days

Specifications:
Solar Inverter
Power Capacity: 1050W, 24VDC
With MPPT Charger Controller: 12V / 20A / 30A
With AC charger
Output: 220V, 50H / 60Hz

Applications:
Television, refrigerator, air condition, computer,electric fan, lighting equipment, test equipment, and etc.
Powerhero pure sinewave solar inverter, which integrated solarcharger controller with Max Power Point Trackig function, high charging efficiency, low static loss.

Description:
WSKE series solar inverter provides pure sine wave green power for commercial, household and industrial applications. Capacity Availabilityy range from 500VA to 2500VA, it can power most common electrical appliances in these fields. Unique toroidal transformer technology, makeour inverter a very low exciting current which is the best application forsolar system. Its individual AVR function make your appliance work very smootheven if mains power is not stable.

Model		WSKE-500	WSKE-800	WSKE-1000	WSKE-1500	WSKE-2000	WSKE-2500
Rated Power		300W	500W	700W	1050W	1400W	1800W
Battery Voltage		12Vdc	12Vdc	12Vdc	24Vdc	24Vdc	24Vdc
Working Mode		PV(Photovoltaic priority) / AC(AC priority)optional
PV	Input Voltage Range	12Vdc- 25Vdc			24Vdc- 50Vdc
	Max. Charge Current	10A / 20A / 30A / 40A / 60A optional
	Max. Conversion Efficiency	98%
Display	Panel Indicator Light	LED graphic screen + LED lights
Mains status(Optional)	Input Voltage Range	140Vac~ 275Vac
	Input Frequency Range	45- 65 Hz (automatically transfer to invert mode when overfrequency)
	Output Voltage Range	190Vac~ 245Vac
	Input PF.(AC/DC)	98%
	Efficiency	mains mode≥ 96%
	Charge Current	10A
	Mains Overload	warning until decrease load
	Short Circuit	yes
Inverter Output	Inverter Output Voltage	220V±3%
	Output Frequency	50 Hz / 60Hz ± 0.3Hz frequency adaptive
	Output Power Factor	≥0.8
	Wave Form Distortion	linear load≤ 3%
	PV-AC Transfer Time	4Ms typical value Max.6 Ms
	Efficiency	invert mode≥ 80%
	Inverter Overload	110%- 130% shutdown at 30s,130%- 150% shutdown at 3s
	Short Circuit	system automatically shut down
Alarm	Mains Abnormal	1 time / 1S, silence auto after 5S
	Low Battery	1 time /1S and flash battery last grid
	Overload	1 time / 1S and display "overload" grid
Communication Interface		RS232 (optional)
Others	Output Sockets	universal sockets / customized
	Surge Protection	optional
	Ambient Temperature	0°C~ 40°C
	Ambient Humidity	10%~ 90% (non condensed)
	Noise	≤ 50dB
	Machine Dimension	384x219x275
	Packing Dimension(MM)	455 x280x 350
	Qty/Ctn	1
	Packing G.W.(kg)	7.80	8.40	9.80	10.80	14.00	15.80

　Foundeded in 2001, Huizhou Yinghua Electronic Co., LTD. is a professional manufacturer and solution provider of high-quality automatic voltage stabilizers ranging from 500VA to 20kVA, Solar integrated inverters and UPS ranging from 500VA to 10kVA, transformers and converters. With brand  Powerhero and experienced workers, we turn out 50,000 units monthly. Yinghua has been a pioneer of technology since we explored the key technology of aluminum transformer production and we also became the first aluminum transformer supplier. We invested a lot on our R&D team which has designed high performance MCU controlled circuit.
