British professional manufacturing aluminum transformer 22 years

WS Series Solar Inverters WSKE-2000 1
WS Series Solar Inverters WSKE-2000 2
WS Series Solar Inverters WSKE-2000 1
WS Series Solar Inverters WSKE-2000 2

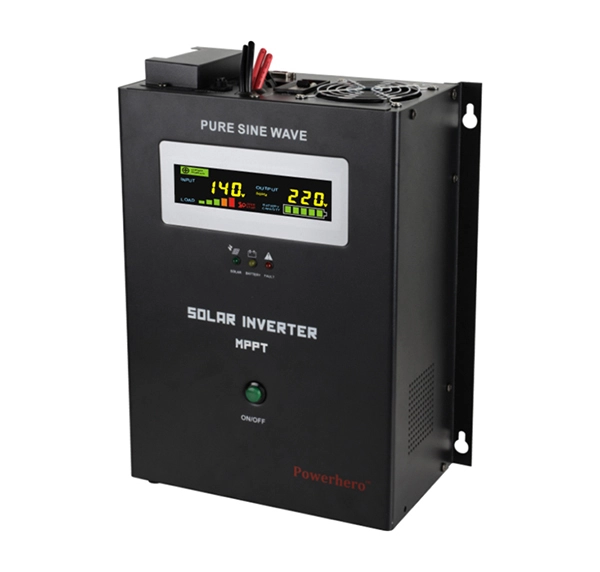

WS Series Solar Inverters WSKE-2000

5.0
Place of Origin:
Guangdong, China
Brand Name:
Powerhero
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    Quick Details
    Place Of Origin: Guangdong, China (Mainland)
    Brand Name: Powerhero
    Model Number: WSKE-2000VA
    Output Power: 1400W
    Output Type: Single
    Size: 384x219x275
    Weight: 14.0Kgs
    Input Voltage: 24VDC
    Output Voltage: 110V / 120V / 220V / 230V / 240V optional
    Type: DC / AC Inverters
    Output Frequency: 50Hz / 60Hz
    Color: Black
    Case: Vertical type
    Display: LED Graphic

    Packaging & Delivery

    Packaging Details: Machine Size(LxWxH mm): 384 x 219 x 275
    Carton Size(LxWxH mm): 455x 280x 350
    Delivery Detail: 7- 30 days


    Specifications:
    Solar Inverter
    Power Capacity: 1400W, 24VDC
    With MPPT Charger Controller: 12V / 20A / 30A
    With AC charger
    Output: 220V, 50H / 60Hz

    Applications:
    Television, refrigerator, air condition, computer,electric fan, lighting equipment, test equipment, and etc.
    Powerhero pure sinewave solar inverter, which integrated solarcharger controller with Max Power Point Trackig function, high charging efficiency, low static loss.


    Description:

    WSKE series solar inverter provides pure sine wave green power for commercial, household and industrial applications. Capacity Availabilityy range from 500VA to 2500VA, it can power most common electrical appliances in these fields. Unique toroidal transformer technology, makeour inverter a very low exciting current which is the best application forsolar system. Its individual AVR function make your appliance work very smootheven if mains power is not stable.


    Model WSKE-500 WSKE-800 WSKE-1000 WSKE-1500 WSKE-2000 WSKE-2500
    Rated Power 300W 500W 700W 1050W 1400W 1800W
    Battery Voltage 12Vdc 12Vdc 12Vdc 24Vdc 24Vdc 24Vdc
    Working Mode PV(Photovoltaic priority) / AC(AC priority)optional
    PV Input Voltage Range 12Vdc- 25Vdc 24Vdc- 50Vdc
    Max. Charge Current 10A / 20A / 30A / 40A / 60A optional
    Max. Conversion Efficiency 98%
    Display Panel Indicator Light LED graphic screen + LED lights
    Mains status(Optional) Input Voltage Range 140Vac~ 275Vac
    Input Frequency Range 45- 65 Hz (automatically transfer to invert mode when overfrequency)
    Output Voltage Range 190Vac~ 245Vac
    Input PF.(AC/DC) 98%
    Efficiency mains mode≥ 96%
    Charge Current 10A
    Mains Overload warning until decrease load
    Short Circuit yes
    Inverter Output Inverter Output Voltage 220V±3%
    Output Frequency 50 Hz / 60Hz ± 0.3Hz frequency adaptive
    Output Power Factor ≥0.8
    Wave Form Distortion linear load≤ 3%
    PV-AC Transfer Time 4Ms typical value Max.6 Ms
    Efficiency invert mode≥ 80%
    Inverter Overload 110%- 130% shutdown at 30s,130%- 150% shutdown at 3s
    Short Circuit system automatically shut down
    Alarm Mains Abnormal 1 time / 1S, silence auto after 5S
    Low Battery 1 time /1S and flash battery last grid
    Overload 1 time / 1S and display "overload" grid
    Communication Interface RS232 (optional)
    Others Output Sockets universal sockets / customized
    Surge Protection optional
    Ambient Temperature 0°C~ 40°C
    Ambient Humidity 10%~ 90% (non condensed)
    Noise ≤ 50dB
    Machine Dimension 384x219x275
    Packing Dimension(MM) 455 x280x 350
    Qty/Ctn 1
    Packing G.W.(kg) 7.80 8.40 9.80 10.80 14.00 15.80


    With a 19,000m2 factory, 8 production lines and over 150 well-trained workers, we have the complete production chain. And all products export from us must strictly pass IQC inspections on critical components, 100% online testing, under loading and burn-in testing. Quality-assured products are our voice to all the worlds.

    WS Series Solar Inverters WSKE-2000 3
    Powerhero factory

    WS Series Solar Inverters WSKE-2000 4
    burn-in testing line
    WS Series Solar Inverters WSKE-2000 5
    Power supply workshop
