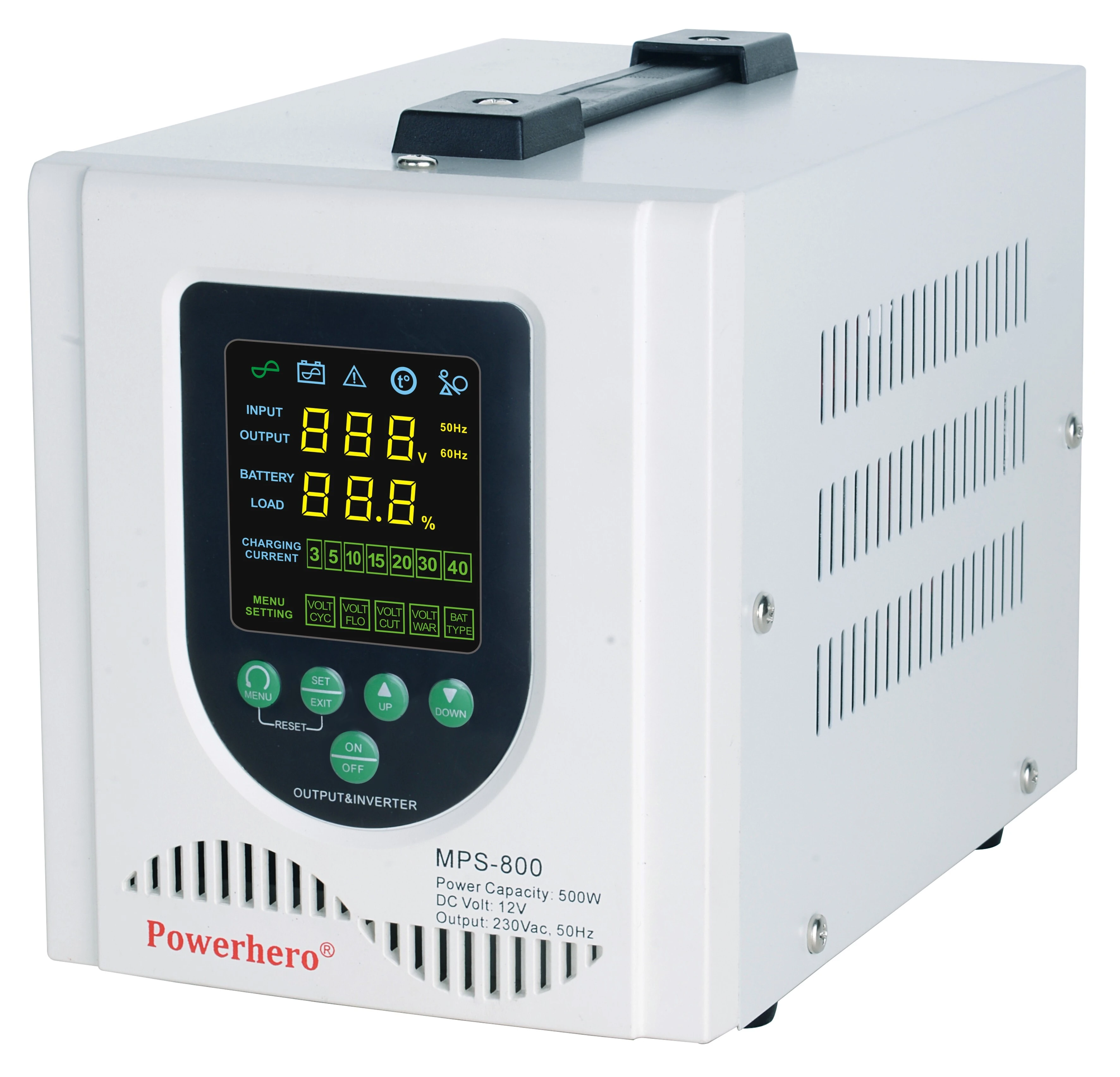

MPS SERIES PURE SINE WAVE INVERTERS
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1.Pure sine wave output, compitable for multi-types battery working.
2.Three-stage intelligent charging mode.
3. The screen can show various working parameters & status, which can work with many types batteries such as lead acid, Gel, Lifepo4 batteries.
4. Multi-functions as inverter, UPS, voltage stabilizer and battery charger.
5. 32-bit high-speed MCU for accurate control calculation and detection.
6. Over-temperature & over-loading, short circuit protection available.
| Model | MPS 500VA | MPS 800VA | MPS 1000VA | MPS 1500VA | MPS 2000VA | MPS 2500VA | |
| Rated Capacity | 500VA | 800VA | 1000VA | 1500VA | 2000VA | 2500VA | |
| Rated Power | 300W | 500W | 700W | 1050W | 1400W | 1800W | |
| TRANSFORMERS | C.R.G.O | ||||||
| Interface | LED graphic | ||||||
| Display Status | working & loading & battery | ||||||
| Input | Voltage | 140~275 Vac | |||||
| Frequency | 45~65 Hz | ||||||
| Output | Voltage | 220Vac ±3% for inverter; 190V-245V for avr | |||||
| Frequency | 50/60 Hz ± 0.3Hz, subject to the main | ||||||
| Wave Form | Pure sinve wave | ||||||
| Wave Distortion | ≤ 3% | ||||||
| Protection | overload / high temperature / output high voltage / output low voltage / battery low voltage / short circuit / over-charge / over-discharge / reversed polarity(optional) | ||||||
| Transfer Time | ≤ 4ms | ||||||
| Battery Voltage | 12V DC | 24VDC | |||||
| Charge Current | 5A/10A/15A/20A/30A optional | ||||||
| Cooling System | Yes | ||||||
| Environmental | Operating Temperature | 0 - 40 ℃ | |||||
| Relative Humidity | 10%~90% RH, non-condensing | ||||||
| Storage Temperature | ﹣15 - 45 ℃ | ||||||
| Appearance | Machine size | 138*228*155 | 138*276*155 | 146*237*170 | 182*312*203 | 182*312*203 | |
| Qty/Ctn | 4 | 2 | 2 | 1 | 1 | ||
| Carton Size (mm) | 720*300*215 | 380*355*225 | 41.5*41*24.5 | 48*39.85*28 | |||
