WMPS SERIES PURE SINE WAVE INVERTERS 1
WMPS SERIES PURE SINE WAVE INVERTERS 2
WMPS SERIES PURE SINE WAVE INVERTERS 1
WMPS SERIES PURE SINE WAVE INVERTERS 2

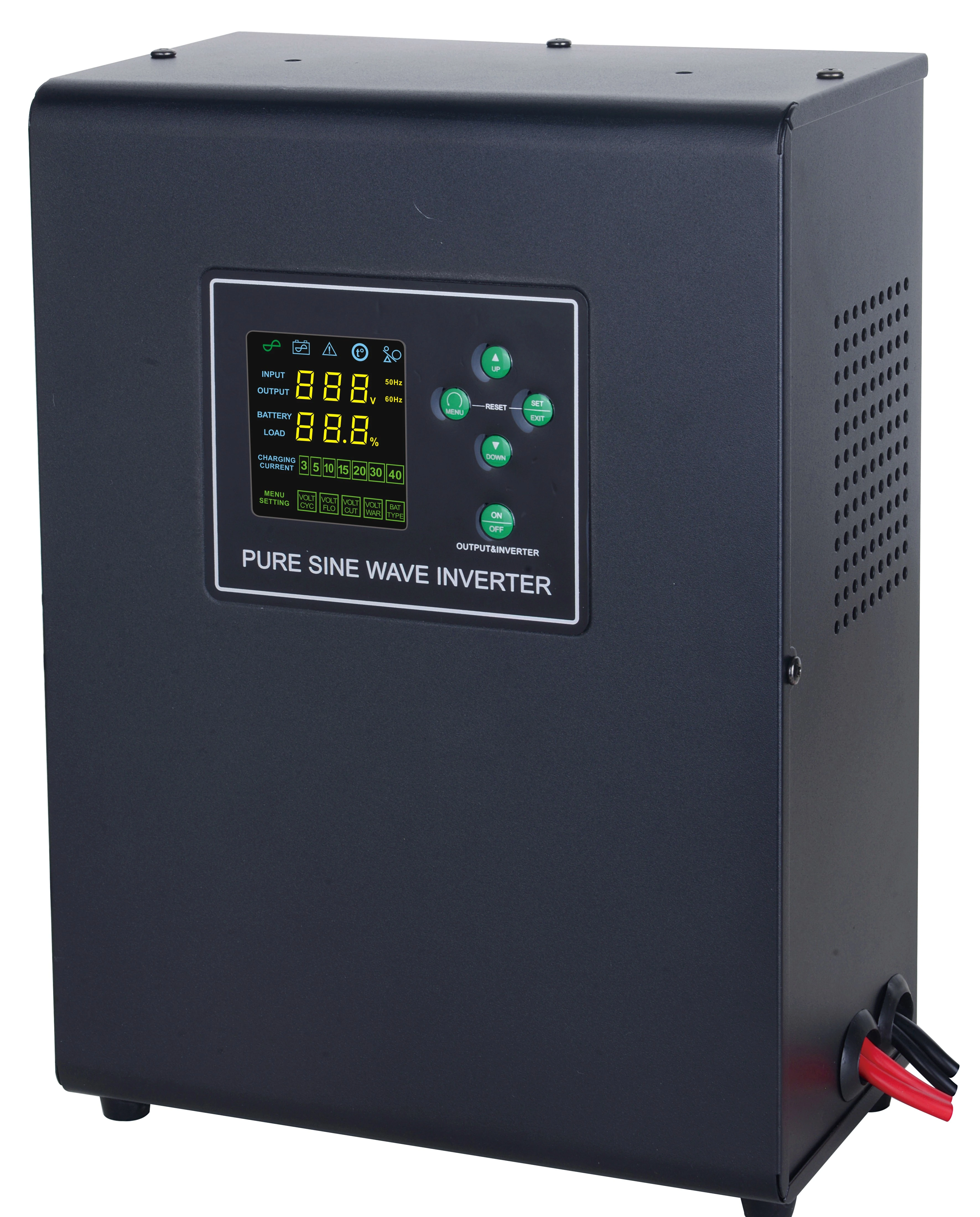

WMPS SERIES PURE SINE WAVE INVERTERS

1.Wall Mounted Pure sine wave output, compitable for multi-types battery working.
2.Three-stage intelligent charging mode.
3. The screen can show various working parameters & status, which can work with many types batteries such as lead acid, Gel, Lifepo4 batteries.
4. Multi-functions as inverter, UPS, voltage stabilizer and battery charger.
5. 32-bit high-speed MCU for accurate control calculation and detection.
6. Over-temperature & over-loading, short circuit protection available.

    oops...!

    no product data.

    Go to homepage
      Model  WMPS-500 WMPS-800 WMPS-1000 WMPS-1200 WMPS-1500 WMPS-2000 WMPS-1500 WMPS-2000 WMPS-2500
      Rated Capacity 500VA 800VA 1000VA 1200VA 1500VA 2000VA 1500VA 2000VA 2500VA
      Rated Power 300W 500W 700W 800W 1050W (12V)  1200W (12V)  1050W (24V)  1400W (24V)  1800W(24V)
      Transformer C.R.G.O. toroidal transformer
      Interface LED graphic
      Display Status working & loading & battery
      Input Voltage 140~275 Vac
    Frequency 45~65 Hz
      Output Voltage 220Vac ±3% for inverter;190V-245V for avr
    Frequency 50/60 Hz ± 0.3Hz, subject to the main
    Wave Form pure sinve wave
    Wave Distortion ≤ 3%
      Protection overload / high temperature / output high voltage / output low voltage / battery low voltage / short circuit / over-charge / over-discharge / reversed polarity(optional)
      Transfer Time ≤ 4ms
      Battery Voltage 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 24V DC 24V DC 24V DC
      Charge Voltage 13.8V±0.5V 13.8V±0.5V 13.8V±0.5V 13.8V±0.5V 13.8V±0.5V 13.8V±0.5V 27.6V±0.6V 27.6V±0.6V 27.6V±0.6V
      Low Battery Voltage Limit 10.9V ±0.3V  10.9V ±0.3V  10.9V ±0.3V  10.9V ±0.3V  10.9V ±0.3V  10.9V ±0.3V  21.8V ±0.6V 21.8V ±0.6V 21.8V ±0.6V
      Battery Low Voltage Protection    Point  10.2V ±0.3V    10.2V ±0.3V    10.2V ±0.3V    10.2V ±0.3V    10.2V ±0.3V    10.2V ±0.3V   20.5V ±0.6V 20.5V ±0.6V 20.5V ±0.6V
      Charge Current Max. 5A/10A/20A /30A optional
      Cooling System Yes
      Environmental Operating Temperature 0 - 40 ℃
    Relative Humidity 10%~90% RH, non-condensing
    Storage Temperature ﹣15 - 45 ℃
