British professional manufacturing aluminum transformer 22 years

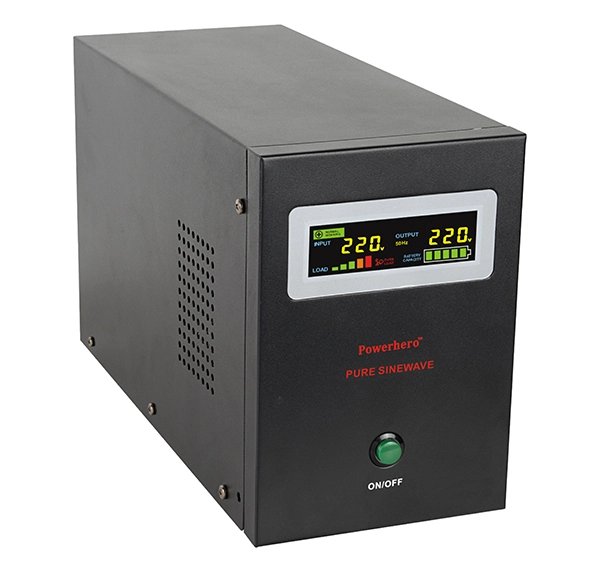

P Series Sinewave Inverters PSE-800 1
P Series Sinewave Inverters PSE-800 1

P Series Sinewave Inverters PSE-800

5.0
Place of Origin:
Guangdong, China
Brand Name:
Powerhero
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    Quick Details
    Place Of Origin: Guangdong, China (Mainland)
    Brand Name: Powerhero
    Model Number: PSE-1000
    Output Power: 500- 1000W
    Output Type: Single
    Size: 341x146x210(mm)
    Input Voltage: 140- 275Vac
    Output Voltage: 220V±8%
    Type: DC / AC Inverters
    Output Frequency: 50 / 60Hz
    Panel: Metal panel
    Waveform: Pure sine wave
    Color: Black
    Display: LED graphic colorful display
    Max Charging Current: 10- 20A selectable

    Packaging & Delivery

    Packaging Details: 1 pcs to 1 individual colourful box
    2 pcs to 1 individual carton box
    Delivery Detail: within 30 days after receiving the deposit


    Specifications:
    1, Innovation TTI technology
    2, With charger & AVR
    3, DC Input: 12V
    4, Output: 220V, 50 / 60Hz
    5, Very low idle current


    Applications:

    Television,refrigerator, air condition, computer, electric fan, induction cooker,generator, printer, duplicators, lighting equipment, test equipment, and etc.


    Description:

    PSESeries Inverter UPS provides pure sine wave power for commercial, household and industrial applications. Capacity availability range from 500VA to 7000VA, itcan power most common electrical appliances in these fields.
    CPU control
    CPU control, built in intelligent software offers high precision output.
    PWM technology, Pure Sine Wave output
    Puresine wave output, suitable for all types of loading includes resistive load,inductive load, complex load…
    LED Colorful human machine interface
    Sensitive short circuit protection
    When short circuit happens, UPS will shut down and giving warning.
    Sensitive intelligent overload protection
    On battery mode, overload more than 110%, UPS will give warning (beeping) for 30 seconds, after 30 seconds; UPS will switch off inverter to avoid damage.
    On battery mode, overload more than 150%, UPS instantly switches off. On normal model, overload will activate the beeping warning until loading is reduced tonormal range.
    Shorter transfer time
    <4ms, make sure your IT applications work smoothl
    Self diagnostic function
    Individual charger
    Whenmain power comes back, battery will be recharged automatically

    Model PSE-500 PSE-1000 PSE-1500 PSE-2000 PSE-3000
    Rated Capacity 500VA 1000VA 1500VA 2000VA 3000VA
    Rated Power 300W 700W 1050W 1400W 2100W
    Transformer C.R.G.O
    Interface LCD
    Display Status working & loading & battery
    Input Voltage 140~ 275 Vac
    Frequency 45~ 65 Hz
    Output Voltage 220Vac ±1% for inverter; 220Vac ±8% for regulator
    Frequency 50 / 60Hz ± 0.5Hz, subject to the main
    Wave form Pure sinve wave
    Wave distortion ≤ 3%
    Protection Overload Yes
    High temperature Yes
    Output high/low voltage Yes
    Battery low voltage Yes
    Battery Over charge, over discharge, reversed polarity protection (optional)
    Short circuit Yes
    Transfer Time ≤ 4ms
    Battery Voltage 12V DC 12V DC 24V DC 24V DC 48V DC
    Charge Voltage 13.8V±0.5V 13.8V±0.5V 27.6V±0.5V 27.6V±0.5V 55V±1V
    Low Battery Voltage Limit - 11V ±0.5V 11V ±0.5V 22V ±1V 22V ±1V 44V ±1V
    Battery Low VoltageProtection Point - 10.5V ±0.5V 10.5V ±0.5V 21V ±1V 21V ±1V 42V ±1V
    Charge Current Max. 10 / 20A Selectable
    Cooling system Yes
    Environmental Operating temperature 0- 40 °C
    Relative humidity 10%~ 90% RH, non condensing
    Storage temperature -15 - 45 °C
    Appearance Inverter size (mm) 341x146x210 384x219x275
    Inverter N.W. (kg) 5.60 8.15 9.20 13.20 17.20
    Inner box size (mm) 405x195x265 445x270x340
    Qty/Ctn 2 1
    Carton size (mm) 445x430x285 445x270x340
    Carton G.W. (kg) 13.60 18.30 20.60 14.00 18.00
